MANO561
SKU
MANO561-H
Lead time 14-22 days

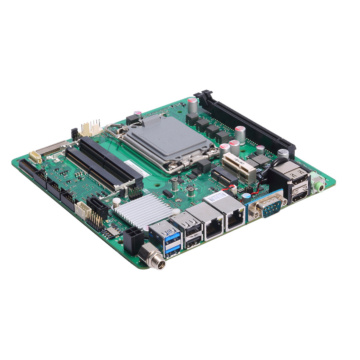

Thin Mini-ITX SBC with LGA1700 12th Gen Intel® Core™ i9/i7/i5/i3, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN
- LGA1700 12th gen Intel® Core™ i9/i7/i5/i3 processor
- Intel® H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 1 2.5GbE LAN and 4 COM ports
- 1 PCIe x16, 1 M.2 Key E and 1 M.2 Key B
- 1 full-size mini-PCIe slot
- 1 SATA-600
- 12 to 24 VDC power in
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | LGA1700 12th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W) |
| Security Hardware | Onboard TPM2.0 |
| Chipset | Intel® H610 |
| Storage | 1 x SATA-600 |
| Memory | 2 x 266-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 5 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 2x USB3.2 Gen1 |
| Serial | 1 x RS-232/422/485 (with +5V/+12V power) 3 x RS-232 |
| Video | 2 x HDMI 1 x LVDS (eDP BOM optional) 1 x VGA |
| Ethernet | 1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V) 1 x 1000/100/10 Mbps Ethernet (Intel® i219-V) |
| Other Ports | DIO Audio MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 1 x M.2 Key B (USB 3.2 Gen1 for 3042/3052 5G module or SATA interface for 2242 SSD) 1 x M.2 Key E 2230 1 x mini-PCIe 1 x SIM for M.2 Key B |
| Operating System | |
| Operating System | Windows11, Windows10 , Linux |
| Power | |
| Power Input | 1 x 12 to 24V DC Jack 1 x 12 to 24V 4-pin ATX connector |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170mm x 170mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | Mini-ITX |
