MANO540
SKU
MANO540
In Stock
307.48EUR 245.00EUR

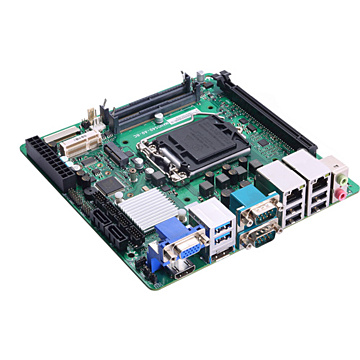

Mini-ITX SBC with FCLGA1200 10th Gen Intel® Core™ i9/i7/i5/i3, DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN
- Intel® H410 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 6 COM port
- 1 PCIe x16 and 1 M.2 Key E slot
- 1 Full-size mini-PCIe slot
- 2 SATA-600
- 1 M.2 Key B for USB 3.2 interface 5G module
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor |
| Security Hardware | Onboard TPM2.0 |
| Chipset | Intel® H410 |
| Storage | 1 x M.2 Key B 2242/2280/3042/3052 (USB 3.2 Gen1 for
3042/3052 5G module ) 2 x SATA-600 |
| Memory | 2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 5 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 2x USB3.2 Gen1 |
| Serial | 1 x RS-232/422/485 (with +5V/+12V power) 1 x RS-232 |
| Video | 1 x DisplayPort++ 1 x HDMI 2.0 1 x eDP 1 x VGA |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM) |
| Other Ports | DIO Audio MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 1 x M.2 Key B 1 x M.2 Key E 2230 1 x mini-PCIe |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | Standard 12V ATX power 24+4 pin ATX connector AT Mode Auto Power Function supported |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170mm x 170mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA 1200 |
| Form Factor | Mini-ITX |
