M2C2F00 M.2 CAN FD -Card
SKU
M2C2F00
Lead time 21-30 days

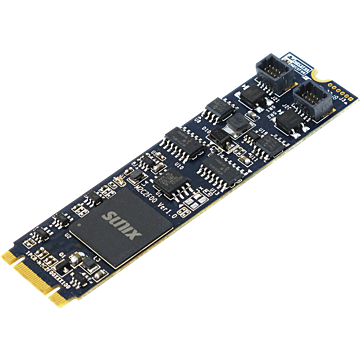

Industrial M.2 to 2-port CAN FD Communication Card
- Suitable for M.2 slot with Key-M or Key-B based on PCI Express communication.
- Equipped with high reliable SUNIX QiuNiu controller.
- Complies with CAN specifications 2.0B and FD
- CAN FD bit rates for the data field up to 8 Mbit/s
- Plug-n-Play, I/O address and IRQ assigned by system.
- Support proprietary SocketCAN driver, allowing users to program under Linux operating systems.
| Processor | |
| Interface | M.2 PCIe |
| Controller | SUNIX QiuNiu Controller |
| BUS | PCI Express 2.0 x1, M.2 2280, Type 59-pin Key B+M Male |
| IRQ & IO | Assigned by System |
| ESD Protection | ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge |
| CAN Communication | CAN2.0 / CAN FD |
| 2-Channel | |
| Data bitrate | 1Mbit/s, 8Mibit/s |
| Software | Linux 5.x, SocketCAN |
| PCB Dimension | 22x80mm |
| I/O | CAN bus |
|---|---|
| Manufacturer / Brand | Sunix |
