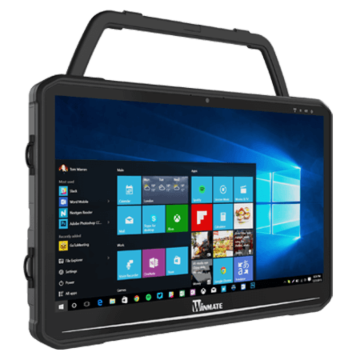

M140TG Industrial Rugged Tablet

Customize M140TG Industrial Rugged Tablet
M140TG

* Required Fields

Your Customization
M140TG Industrial Rugged Tablet
M140TG Industrial Rugged Tablet

0.00EUR

Summary
    SKU
    M140TG
    Lead time 21-30 days

    0.00EUR

    • 14-inch tablet, 1920 x 1080 wide viewing angle LED Panel
    • 11th Gen. Intel® Processor Family – Tiger Lake Processor
    • Optical bonding and Antiglare technology for sunlight readability
    • IP65 water and dust proof with MIL-STD-810H rugged housing
    • Hot-swappable battery for whole day work
    System
    Processor Intel Core i5-1135G7 2.4GHz
    Discrete GPU -
    Memory DDR4 SDRAM
    Chipset -
    Storage 128GB SSD
    Expansion SDXC Slot
    Keyboard -
    Display
    Screen Size 14" FHD TFT LCD
    Screen Resolution 1920x1080
    Display Ratio -
    Contrast Ratio 800 ::1
    Brightness 700 nits
    Viewing Angle 85 85 85 85
    Bonding Optical Bonding for Sunlight Viewability
    Touch Screen
    Touchscreen PCAP Multi Touch
    I/O Ports
    USB 2.0 -
    USB 3.0 2 x USB3.0 (Type A)
    1 x USB3.0 (Type C)
    Serial -
    Video -
    Ethernet 1 x RJ-45 for 10/100/1000Mbps
    Other Ports 1 x Audio combo 3.5mm
    Dual Digital Mic with noise cancellation
    Dual Speaker
    Docking connector
    Connectivity
    Wlan Support
    BT Support
    WWAN 4G LTE (optional)
    GNSS GPS, Glonass
    RFID HF RFID reader 13.56MHz (Optional)
    Fingerprint Scanner -
    SD Card Slot 1 x Micro SDXC Slot


    Control
    Button 1 x Power
    3 x Programmable Function Keys
    Camera
    Front Camera 2MP Front Camera
    Rear Camera 8MP Rear Camera with auto-focus and LED light

    -
    Barcode Scanner

    -
    Security Function
    Kensington Lock Kensington Lock Support

    TPM2.0
    Operating System
    Operating System Windows 10 /Windows 11
    Power
    DC Input / Source Voltage 19V DC
    Battery Internal Battery: 10.8V typ. 2400 mAh Li-Ion Battery
    Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P)
    Battery Operating time Standard Battery . 10 hours
    Adapter 240 V AC / 19V DC adapter
    Operating Temperature
    Operating Temperature -20ºC to 60ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fanless thermal design
    Dimensions / Weight
    Weight (kg) 1.7kg
    Dimensions 342 x 225 x 25.4mm
    Certification
    IP rating IP 65
    Certification CE / FCC
    Vibration: MIL-STD-810H Method 514.8
    Drop: MIL-STD-810H Method 516.8
