M1101 CDS Monitor Module

Customize M1101 CDS Monitor Module
M1101 CDS Monitor Module

* Required Fields

Your Customization
M1101 CDS Monitor Module
M1101 CDS Monitor Module

0.00EUR

Summary
    SKU
    M1101_R10
    Lead time 21-30 days

    0.00EUR

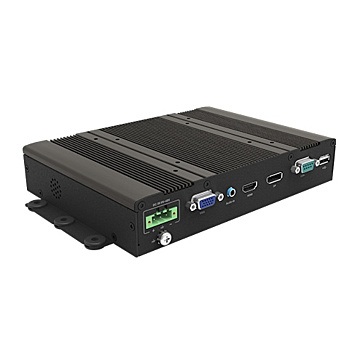

    CDS Monitor Module with 1x DisplayPort, 1x HDMI, 1x VGA

    • Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
    • Support USB & RS-232 Interfaces for Touch Function
    • OSD Control keys for Brightness Adjustment
    • Convertible Display System (CDS) Supported
    • EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
    • Safety Certification: UL, cUL, CB, IEC, EN 62368-1
    System
    Video Input 1x VGA
    1x HDMI
    1x DisplayPort
    Audio AMP 2W+2W (internal Speaker)
    Audio Line-In (3.5mm phone jack)
    Touch interface USB
    RS-232 (Resistive touch only)
    OSD Function LCD On/Off , Auto, Menu, Brigtness Up/Down
    Power
    DC Input / Source Voltage 9-48V DC input
    230V AC-DC Adapter (optional)
    Operating Temperature
    Operating Temperature -20C .. 60C
    Humidity Range 10%-95%
    Thermal Solution Passive – Fanless
    Dimensions / Weight
    Weight (kg) 1.2 kg
    Dimensions 204 x 149 x 38,5 mm
    Enclosure
    Bezel
    Material Aluminum
    Mounting Wall / VESA/ CDS Mounting
    Certification
    Certification UL, cUL, CB, IEC, EN 62368-1
    CE, UKCA, FCC, ICES-003 Class A
    EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
