M1001 CDS Monitor Module
SKU
M1001_v1
In Stock
0.00EUR

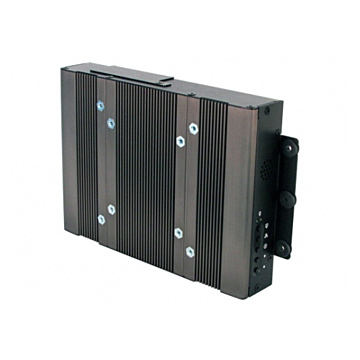

CDS Monitor Module with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
Ominaisuudet
* 1x VGA, 1x DVI-D, 1x DisplayPort Input Interface
* 1x USB, 1x COM, 1x Audio Input
* OSD Control Pad: LCD On/Off, Auto, Menu, Up and Down
* Multi-language OSD Function
* Wide Range Power Input 9~48VDC
* Support Wall / VESA / CDS Mounting
* Convertible Display System (CDS) Supported
* Built-in Two 5W Internal Speakers
* 1x USB, 1x COM, 1x Audio Input
* OSD Control Pad: LCD On/Off, Auto, Menu, Up and Down
* Multi-language OSD Function
* Wide Range Power Input 9~48VDC
* Support Wall / VESA / CDS Mounting
* Convertible Display System (CDS) Supported
* Built-in Two 5W Internal Speakers
Spesifikaatiot
| System | |
| Video Input | 1x VGA 1x DVI-D 1x DisplayPort |
| Audio | AMP 5W+5W (internal Speaker) |
| Touch interface | USB RS-232 (Resistive touch only) |
| OSD Function | LCD On/Off , Auto, Menu, Brigtness Up/Down |
| Power | |
| DC Input / Source Voltage | 9-48V DC input 230V AC-DC Adapter (optional) |
| Operating Temperature | |
| Operating Temperature | -5C .. 60C |
| Humidity Range | 10%-95% |
| Thermal Solution | Passive – Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 204 x 149 x 38,5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Wall / VESA/ CDS Mounting |
| Certification | |
| Certification | CE / FCC |
