LV-67127
SKU
LV-67127
Lead time 21-30 days

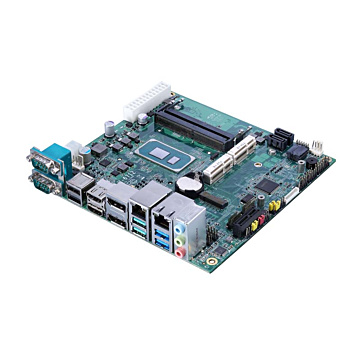

Mini-ITX Motherboard support Intel® Tiger Lake UP3 Processor
- i7-1185G7E + Cooler fan
- DDR4 up to 64 GB
- HDMI, LVDS, DisplayPort
- 1 x Giga LAN, 1 x Giga PHY LAN
- 4 x USB 3.2 Gen2, 4 x USB 2.0
- 2 x RS232/422/485, 4 x RS232
- 1 x PS/2, HD Audio, 2 x SATA3, GPIO, SMBus
- PCIe X1, 2 x Mini-PCIe socket 1 x M.2 2280(Key M)
CPU: i7-1185G7E + Cooler fan
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | Intel® Tiger Lake UP3 Processor, FCBGA1449 package |
| Integrated Graphics | Intel® Iris® Xe Graphics |
| Security Hardware | |
| Chipset | |
| Storage | 2 x SATA3 |
| Storage Support | |
| Memory | 2 x 260-pin SO-DIMM DDR4 max 64GB |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 4 x USB3.2 |
| Serial | 4 x RS-232 2 xRS-232/422/485 |
| Video | 2 x HDMI 2 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps |
| Other Ports | 1 Audio GPIO 1 x PS/2 |
| Expansion | |
| Expansion Interface | 1 x PCIE X 1 slot 2 x PCIe Mini card (one supports mSATA) 1 x M.2 (Key M) |
| Operating System | |
| Operating System | WIN10 |
| Power | |
| DC Input / Source Voltage | 24pin ATX power supply Or 4-pin DC-9-35V |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170 x 170 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Commell |
|---|---|
| Form Factor | Mini-ITX |
