LRES2014PT-POE
SKU
LRES2014PT-POE
Lead time 21-30 days

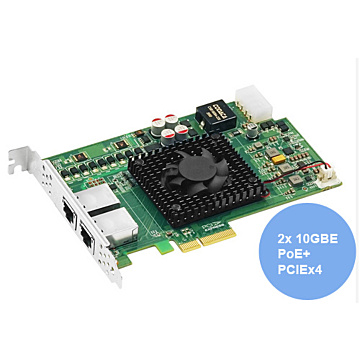

PCIe x4 Dual-port 10G PoE+ Ethernet Frame Grabber Card (Intel X550)
- Intel master chip scheme
- Mainly designed for industrial scene visual detection servers and equipment
- 30W PoE+ output, 4-Pin psu interface
- Adaptive to power output
- Heatsink & Fan for heat dissipation
| System | |
| Controller | Intel chip (X550) |
| Connector | 2x 10G RJ45 |
| Copper type | Cat6 & Cat7 or higher, 10000Base-T up to 100M |
| Bus Type | PCIex4 , compatible with x8 , x16 |
| Data rate | 10/100/1000Mbs |
| Cooling method | Passive Heatsink |
| PoE Power/port | 30W |
| Physical Characteristics | |
| Height | Full Height |
| Protocol Support | |
| IEEE802.3at-2009 PoE standard IEEE802.3at-2003 PoE standard IEEE802.3an 10GBASE-T Ethernet IEEE802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3u 100BASE-TX Fast Ethernet IEEE802.3z IEEE802.1Q VLANs IEEE802.3x IEEE 1588 IEEE802.3az – Energy Efficient Ethernet (EEE) |
|
| iSCSI | No |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | No |
| FcoE | No |
| PCI-SIG/SR-IOV | Yes |
| System Support | |
| Windows 7/10 | |
| Windows Server 2008 R2/2012 R2/2016 R2/2019 | |
| Linux Stable Kernel version 3.x/4.x or later | |
| Ubuntu 14.x/15.x/16.x or later | |
| Vmware ESX/ESXi 4.x or later | |
| Environmental | |
| Operating Temperature | |
| Card Slot Interface | |
| PCIe | PCI Express x4 |
| Connection | 2x 10GBe LAN Ethernet IP |
|---|---|
| Data Interface | PCIEx4 |
