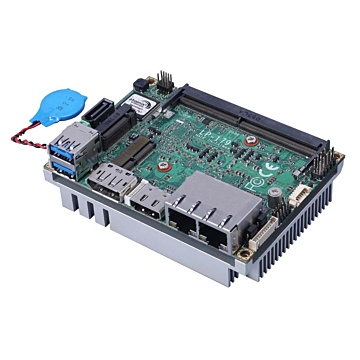

LP-1797

SKU

LP-1797

Lead time 21-30 days

Intel® Tiger Lake UP3 Processor.
HDMI, DisplayPort, Gigabit LAN, USB3.2 Gen2 & USB2.0, HD Audio, M.2 (Key E & M)

CPU: i7-1185G7E + Cooler fan, support HDMI, DP
Memory: One DDR4 3200 SO-DIMM up to 32GB
Integrated Graphics: Intel® Iris® Xe Graphics
DisplayPort interface: Onboard DisplayPort connector.
HDMI interface: Onboard HDMI connector.
LVDS or VGA interface: 11-pin connector (For ADP-3460E or ADP-3355)
Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate
Audio: Realtek ALC262 HD Audio
LAN Interface: 1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 15), 1 x Intel® i225-LM Gigabit LAN(up to 2.5GbE).
Extended interface: One M.2 (Key E) for Wi-Fi and Bluetooth 2230mm, one M.2 2280(Key M) support PCIe Gen4.
Internal I/O: 1 x SATA3, 2 x RS232, 1 x SMBus, 1 x Audio, 2 x USB2.0, 1 x RJ45 LED Connector, 1 x Header for LVDS or VGA (For ADP-3460E or ADP-3355), 1 x DC Out
Rear I/O: 2 x RJ45, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DisplayPort
Power: DC input 12V ± 5%

Form Factor
Form Factor	PICO-ITX

System
Processor	Intel® Tiger Lake UP3 Processor, FCBGA1449 package
Integrated Graphics	Intel® Iris® Xe Graphics
Security Hardware
Chipset
Storage	1 x SATA3
Storage Support
Memory	1 x 260-pin SO-DIMM DDR4 max 32GB
I/O Ports
USB 2.0	2 x USB 2.0
USB 3.0
USB 3.1	2 x USB3.2
Serial	2 x RS-232
Video	1 x HDMI 1 x DisplayPort
Ethernet	2 x 10/100/1000 Mbps
Other Ports	1 Audio
Expansion
Expansion Interface	1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230mm, 1 x M.2 2280(Key M) support PCIe Gen4
Operating System
Operating System	WIN10
Power
DC Input / Source Voltage	12V DC Input plug
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)	0.5kg
Dimensions	100 x 72 mm
Certification
Certification	CE

More Information
Manufacturer / Brand	Commell
Form Factor	Pico-ITX
