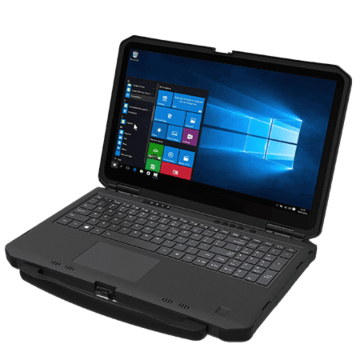

15.6" Rugged Laptop with Intel® Core™ i5-1235U, L156AD
SKU
L156AD
Lead time 21-30 days
3,451.26EUR 2,750.00EUR
- 13th generation Intel® Processor Family – Raptor Lake Processor
- 15.6” FHD Panel resolution with PCAP touch
- Dual battery with hot-swappable design for whole-day-work
- Anti-glare technology for sunlight readability
- Magnesium alloy enclosure with double injection for drop protection
- IP65 waterproof and dustproof
| System | |
| Processor | Intel Core i5-1235U (up to 4.4GHz) |
| Memory | DDR5 SDRAM |
| Chipset | - |
| Storage | 256GB M.2 NVMe SSD 2nd storage : M.2 NVMe SSD slot |
| Expansion | - |
| Keyboard | QWERTY keyboard with RGB backlight 2 x Programmable Function Keys |
| Display | |
| Screen Size | 15.6" FHD TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | - |
| Contrast Ratio | 800 ::1 |
| Brightness | 800 nits |
| Viewing Angle | 85 85 85 85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Touch Screen | |
| Touchscreen | PCAP Multi Touch |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 1 x USB3.0 (Type C) 3 x USB3.0 (Type A) |
| Serial | 1 x RS-232/422/485 |
| Video | 1 x HDMI 4K output (optional) |
| Ethernet | 1 x RJ-45 for 10/100/1000Mbps |
| Other Ports | 1 x Nano SIM card slot 1 x Audio combo 3.5mm jack Dual Digital Mic with Noise Cancellation Dual Speaker |
| Connectivity | |
| Wlan | Support |
| BT | Support |
| WWAN | 4G LTE (optional) 5G (optional) |
| GNSS | GPS, Glonass |
| RFID | HF RFID reader 13.56MHz (Optional) |
| Fingerprint Scanner | Fingerprint scanner (Optional) |
| SD Card Slot | 1 x Micro SDXC Slot |
| Camera | |
| 2MP front camera | |
| - | |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| TPM2.0 | |
| Kensington Lock Support | |
| Operating System | |
| Operating System | Windows 10 /Windows 11 |
| Power | |
| DC Input / Source Voltage | 19V DC |
| Battery | Hot-swappaple 2 x 11.55V, typ 3220 mAh Li-Ion Battery |
| Battery Operating time | Standard Battery . 11 hours |
| Adapter | 240 V AC / 19V DC adapter |
| Operating Temperature | |
| Operating Temperature | -20ºC to 60ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fan design |
| Dimensions / Weight | |
| Weight (kg) | 2.8kg |
| Dimensions | 387 x 256 x 39 mm |
| Certification | |
| IP rating | IP 65 |
| Certification | CE / FCC Vibration: MIL-STD-810H Method 514.8 Drop: MIL-STD-810H Method 516.8 EMC: MIL-STD-461G CE 101, CE102, RE101, RE102, CS118 |
| Cooling | CPU tuuletin |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -20..70C |
