IPC972
SKU
IPC972
Lead time 21-30 days
0.00EUR

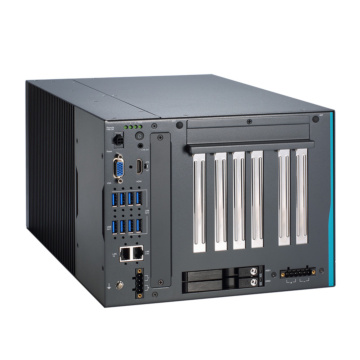

Industrial System with LGA1200 Socket Intel® Xeon® or 10th Gen Core™ i7/i5/i3 Processor, Intel® W480E, Front-access I/O, and PCIe Slots
- LGA1200 Intel® Xeon® or 10th gen Core™ i7/i5/i3 processor, up to 80W
- Intel® W480E chipset
- Supports dual NVIDIA® GeForce RTX 3090 GPU cards
- Supports M.2 Key B slot for 5G wireless connection
- Supports M.2 Key E slot for Wi-Fi connection
- Supports RAID 0, 1, 5
- Supports power-on delay function
- Supports TPM 2.0
| System | |
| Processor | Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 processors (Cometlake-S), up to 80W |
| CPU Performance | |
| Security Hardware | TPM2.0 |
| Chipset | Intel® W480E |
| Storage | 2 x SSD/HDD drive bay (7/9.5mm height, external) 1 x SSD/HDD drive bay (optional, 7/9.5/15mm height, internal) (supports RAID 0,1) 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD |
| Memory | 4 x DDR4-2933 MTs ECC or non-ECC U-DIMM socket, up to 128GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 (internal) |
| USB 3.2 | 6 x USB 3.2 Gen2 (10G) 2 x USB 3.2 Gen1 |
| Serial | |
| Video | 1 x VGA 1920 x 1200 resolution 1 x HDMI 4096 x 2304 @30Hz |
| Ethernet | 1 x 10/100/1000/2500 Mbps Ethernet - Intel® i225-LM 1 x 10/100/1000 Mbps Ethernet - Intel® i211-AT More LAN ports available from extension I/O modules |
| Other Ports | 1 x Line-out 1 x Switch for power On/Off (ATX) 1 x Remote switch |
| Expansion | |
| Expansion Interface | 1 x PCIe x4 slot 1 x PCIe x8 slot (x4 signal) 2 x PCIe x16 slot 2 x Blank slot opening (space for GPU card) 1 x Full-size PCI Express Mini Card slot with SIM slot (USB & PCIe interface) 1 x M.2 Key E 2234 socket 1 x M.2 Key B 3042/3050 socket with SIM slot |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 24VDC -230V AC-DC power adapter |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +60°C with W.T. SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 9 kg |
| Dimensions | 255 x 192 x 360 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
| Cooling | Fanless |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -20..70C |
