IPC970

Customize IPC970
IPC970-10W-F5E1 Barebone

* Required Fields

Your Customization
IPC970
IPC970

0.00EUR

Summary
    SKU
    IPC970
    Lead time 21-30 days

    0.00EUR

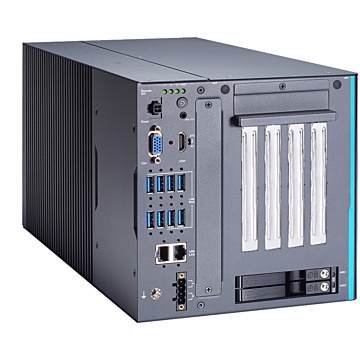

    Industrial System with LGA1200 Socket Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 Processors, Intel® W480E, Front-access I/O and PCIe Slots

    • Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 processors, up to 80W
    • Intel® W480E chipset
    • NVIDIA® RTX3090 GPU card support
    • Supports M.2 Key B slot for 5G wireless connection
    • Supports M.2 Key E slot for Wi-Fi connection
    • Supports RAID 0,1
    • Supports power-on delay function
    • Supports TPM 2.0
    System
    Processor Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 processors (Cometlake-S), up to 80W
    CPU Performance
    Security Hardware TPM2.0
    Chipset Intel® W480E
    Storage 2 x SSD/HDD drive bay (7/9.5mm height, external)
    1 x SSD/HDD drive bay (optional, 7/9.5/15mm height, internal) (supports RAID 0,1)
    1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
    Storage Support
    Memory 4 x DDR4-2933 MTs ECC or non-ECC U-DIMM socket, up to 128GB
    Graphics
    I/O Ports
    USB 2.0 1 x USB2.0
    USB 3.2 6 x USB 3.2 Gen2 (10G)
    2 x USB 3.2 Gen1
    Serial
    Video 1 x VGA 1920 x 1200 resolution
    1 x HDMI 4096 x 2304 @30Hz
    Ethernet 1 x 10/100/1000/2500 Mbps Ethernet - Intel® i225-LM
    1 x 10/100/1000 Mbps Ethernet - Intel® i211-AT
    More LAN ports available from extension I/O modules
    Other Ports 1 x Switch for power On/Off (ATX)
    1 x Remote switch
    1 x 3-pin terminal block
    1 x AT/ATX selectable switch
    Expansion
    Expansion Interface 2 x PCIe x8 (x4 signal) slot
    1 x PCIe x16 slot
    1 x Full-size PCI Express Mini Card slot with SIM slot (USB & PCIe interface)
    1 x M.2 Key E 2230 socket
    1 x M.2 Key B 3042/3050 socket with SIM slot
    Operating System
    Operating System Windows® 10, Linux
    Power
    DC Input / Source Voltage Power Input Voltage 24VDC
    -230V AC-DC power adapter
    Operating Temperature
    Operating Temperature -10°C ~ +70°C with W.T. SSD
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 9.8 kg
    Dimensions 190 x 192 x 360 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC certified
    More Information
    CoolingChassis Fan
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -20..70C
