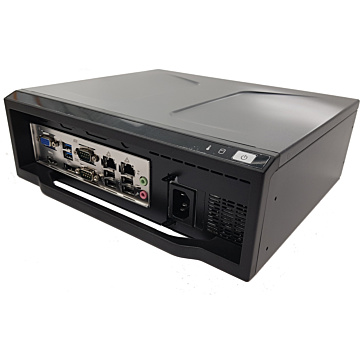

IPC-6620-12 Teollisuus PC
SKU
IPC-6620-12
In Stock
0.00EUR
Mini-ITX SBC with FCLGA1200 10th Gen Intel® Core™ i9/i7/i5/i3, DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN
- Pressurized compact chassis (less dust)
- 10th Gen Intel Core Cpu
- Front IO design
- Economical, Industrial durability
| System | |
| Processor | FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W) |
| Security Hardware | |
| Chipset | Intel® H410 |
| Storage | 2x 2.5” SATA HDD/SSD Bay |
| Storage Support | |
| Memory | 2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB |
| Graphics | Intel® Graphics supports triple independent display 1 x DisplayPort++ 1 x HDMI 2.0 1 x VGA |
| I/O Ports | |
| USB 2.0 | 5 x USB2.0 |
| USB 3.2 | 2x USB 3.0 Gen1 |
| Serial | 1x RS-232/422/485 1x RS-232 |
| Video | 1 x VGA 1 x HDMI 1 x DisplayPort |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | DIO 8-channel MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x M.2 Key B 1 x M.2 Key E 2230 1 x mini-PCIe |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | 230V AC, 180W ATX PSU AT mode supported |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +55°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | FAN, Pressurized cabin with air filter |
| Dimensions / Weight | |
| Weight (kg) | 5 kg |
| Dimensions | 380 x 164 x 316.5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE |
| Cooling | CPU tuuletin |
|---|
