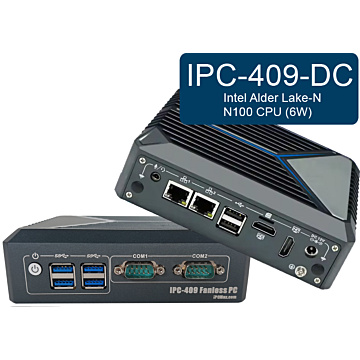

IPC-409-DC
SKU
IPC-409-DC
In Stock
439.26EUR 350.00EUR
Fanless Embedded System, Intel N100 (4-Core) CPU, 2x HDMI, 2x 2.5Gb LAN, 6x USB, 2x COM, 9-36V DC
- Onboard Intel Alder Lake-N N100 CPU (6W)
- Dual monitor support (2x HDMI)
- 2x 2.5G LAN (Intel i225-V)
- 4G LTE & WLAN support
- Small size, Fanless system (150 x 127 x 48mm)
| System | |
| Processor | Intel® Alder Lake-N N100 processor (4-Core, 3.4 Ghz, 6W) |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot (SATA) |
| Memory | 1x DDR4 260-pin SO-DIMM socket, support up to 16 GB |
| I/O Ports | |
| USB 2.0 | 3x USB 2.0 |
| USB 3.0 | 3x USB 3.1 |
| Serial | 2x RS-232 |
| Video | 2 x HDMI |
| Ethernet | 2 x 2.5G Ethernet LAN, RJ-45 (Intel i225-V) |
| Other Ports | Audio |
| Operating System | |
| Operating System | Windows 11 Pro, Windows 10 IoT, Linux |
| Power | |
| Source Voltage | 9-36V DC Input 230V AC adapter (Optional) |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x M.2 2280 slot (SATA) 1 x mPCIE slot (USB2.0 signal) 1 x M.2 2230 E-key slot (wifi, BT) 1 x SIM card slot |
| Operating Temperature | |
| Operating Temperature | 0ºC to 55ºC with normal temp hdd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.9 kg |
| Dimensions | 150 x 127 x 48mm |
| Certification | |
| Certification | CE / FCC |
| Cooling | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Atom X/Intel N) |
| Operating Temp | Normal Temp 0..45C |
