IPC-240-20A1
SKU
IPC-240-20A1
Lead time 21-30 days
0.00EUR

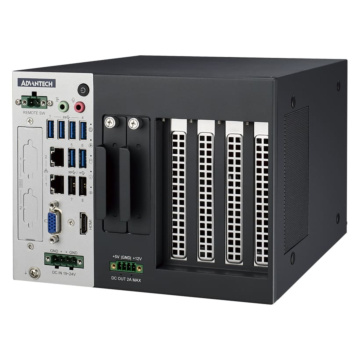

Compact Industrial Computer System with 10th Gen Intel® Core™ i CPU Socket (LGA 1200)
- Intel® 10th Gen Core™ i CPU socket-type (LGA1200) with Intel® Q470E/ H420E chipset
- 3 x independent displays (third display output (DP) via optional cable)
- 2 x GigaLan and 6 x USB3.2
- 2 x RS-232/422/485 and 2 x RS232 serial ports
- 1 x NVMe M.2 (Q470E Only), 2 x 2.5" HDD/SSD, and 1 x mSATA
- 19 ~ 24 VDC input power range
- Support Power Out 12V/5V - 2A
- Supports Advantech i-Door
- Versatile LED for system status and alarm
- PCIEx16 & 3x PCIEx4 slot
| System | |
| Processor | Intel® 10th Gen Core™ i CPU socket-type (LGA1200) |
| Security Hardware | TPM2.0 (by optional module) |
| Chipset | PCE-2032-00A1: Q470E PCE-2132-00A1: H420E |
| Storage | 2 x 2.5" SSD/HDD Easy-Swap Bay 1x M.2 NVMe PCE-2032-00A1 can support RAID 0/1/5/10 |
| Memory | 2 x 260 pin DDR4-2666 non-ECC SO-DIMM, up to 64GB |
| Audio | 1 x line out 1 x mic in |
| Graphics | Integrated Intel HD Graphics |
| I/O Ports | |
| USB 2.0 | 4 USB2.0 |
| USB 3.2 | 6x USB 3.2 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI 1.4 1 x VGA 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet |
| Other Ports | 1 x AT/ATX quick switch 1 x Remote switch |
| Expansion | |
| Expansion Interface | Support Advantech i-Door 1 x PCIex16 3 x PCIex4 |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 19-24VDC |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +45°C |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 10G, IEC-68-2-27, half-sine wave, 11 ms duration (with SSD) |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 3.9 kg |
| Dimensions | 195 x 230 x 150 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | CPU tuuletin |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Normal Temp 0..45C |
