IPC-220-20A1

Customize IPC-220-20A1

Barebone

IPC-220-20A1

CPU CARD

PCE-2132-00A1

CPU

Memory

SSD1

SSD2

TPM

Power Supply

* Required Fields

Your Customization

IPC-220-20A1

Qty

0.00EUR

Summary

SKU

IPC-220-20A1

Lead time 21-30 days

0.00EUR

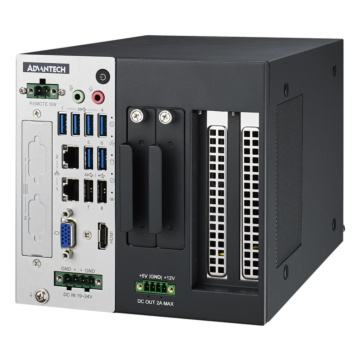

Compact Industrial Computer System with 10th Gen Intel® Core™ i CPU Socket (LGA 1200)

Intel® 10th Gen Core™ i CPU socket-type (LGA1200) with Intel® Q470E/ H420E chipset
3 x independent displays (third display output (DP) via optional cable)
2 x GigaLan and 6 x USB3.2
2 x RS-232/422/485 and 2 x RS232 serial ports
1 x NVMe M.2 (Q470E Only), 2 x 2.5" HDD/SSD, and 1 x mSATA
19 ~ 24 VDC input power range
Support Power Out 12V/5V - 2A
Supports Advantech i-Door
Versatile LED for system status and alarm
PCIEx16 & PCIEx4 slot

System
Processor	Intel® 10th Gen Core™ i CPU socket-type (LGA1200)
Security Hardware	TPM2.0 (by optional module)
Chipset	PCE-2032-00A1: Q470E PCE-2132-00A1: H420E
Storage	2 x 2.5" SSD/HDD Easy-Swap Bay 1x M.2 NVMe PCE-2032-00A1 can support RAID 0/1/5/10
Memory	2 x 260 pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
Audio	1 x line out 1 x mic in
Graphics	Integrated Intel HD Graphics
I/O Ports
USB 2.0	4 USB2.0
USB 3.2	6x USB 3.2
Serial	2x RS-232/422/485
Video	1 x HDMI 1.4 1 x VGA 1 x DisplayPort
Ethernet	2 x 10/100/1000 Mbps Ethernet
Other Ports	1 x AT/ATX quick switch 1 x Remote switch
Expansion
Expansion Interface	Support Advantech i-Door 1 x PCIex16 1 x PCIex4
Operating System
Operating System	Windows® 10, LINUX
Power
DC Input / Source Voltage	19-24VDC
Operating Temperature
Operating Temperature	0°C ~ +45°C
Humidity Range	10% ~ 90%, non-condensing
Vibration	3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock	10G, IEC-68-2-27, half-sine wave, 11 ms duration (with SSD)
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg)	3.5 kg
Dimensions	155 x 230 x 150 mm
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk / Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE
