iNA110
SKU
iNA110-x
Lead time 21-30 days
0.00EUR

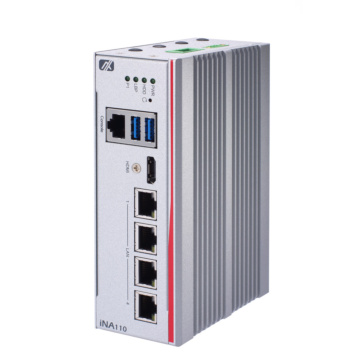

DIN-Rail Cybersecurity Gateway with Intel Atom® x5-E3930/E3940 Processor and 4 LAN with LAN Bypass
- Cost-effective with fanless design
- Intel Atom® x5-E3930/E3940 processor (Apollo Lake)
- 4 GbE RJ-45 (Intel® I210-IT) with LAN Bypass
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Ideal for ICS cybersecurity and critical infrastructure protection
| System | |
| Processor | Intel Atom® x5-E3930/E3940 processor (Apollo Lake) |
| CPU Performance | |
| Security Hardware | TPM 2.0 |
| Chipset | SoC |
| Storage | 1 x Half-size mSATA (occupied 1 x PCI Express Mini
Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) |
| Storage Support | |
| Memory | 1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC memory |
| Audio | |
| Graphics | 1 x HDMI |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 2x USB 3.0 |
| Serial | 1 x COM port (RS-232/422/485) with terminal block 1 x Console port (RJ-45) |
| Video | 1 x HDMI |
| Ethernet | 4 x GbE RJ-45 (Intel® I210-IT) with 1-pair LAN Bypass |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x Half-size PCIe Mini Card slot with SATA/USB
signal 1 x Full-size PCIe Mini Card slot with USB signal (with 1 x SIM slot) |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 9 to 36 VDC (typical 12/24V) 1 x Terminal block |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.3 kg |
| Dimensions | 155 x 110 x 51 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | DIN-rail / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|---|
| CPU Family | Apollo Lake (Celeron/Pentium) |
| Operating Temp | Wide Temp -40..70C |
