IMB701

SKU

IMB701

Coming

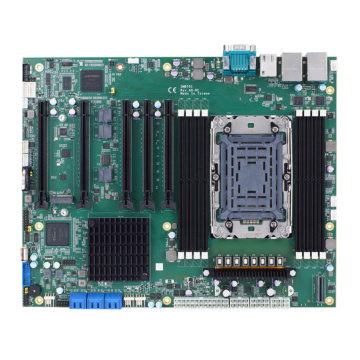

ATX Motherboard with LGA4677 Socket 5th/4th Gen Intel® Xeon® Scalable Processors, Intel® C741, 5 PCIe x16, VGA, IPMI, USB 3.2, and NVMe

5th/4th gen Intel® Xeon® Scalable processors (Platinum, Gold, Silver, and Bronze), up to 350W TDP
8 DDR5-5600 R-DIMM ECC, up to 512GB memory
5 PCIe x16
Supports M.2 Key M and MCIO
Supports IPMI 2.0 and Redfish API
Supports multiple graphic cards
Supports internal USB dongle

Form Factor
Form Factor	ATX

System
Processor	LGA4677 socket (socket E) 5th/4th gen Intel® Xeon® Scalable processors (Platinum, Gold, Silver, and Bronze), up to 350W TDP
Security Hardware
Chipset	Intel® C741
Storage	1 x NVMe M.2 Key M 2280 (PCIe Gen5 x4) 1 x MCIO (PCIe Gen5 x8) for 2 x NVMe SSD 6 x SATA-600 with RAID 0/1/5/10
Memory	8 x DDR5-5600 R-DIMM ECC, up to 512GB memory
Graphics
I/O Ports
USB 2.0	2 x USB 2.0 (Type-A, Internal) 1 x USB 2.0 (header, internal)
USB 3.1	4 x USB 3.2 Gen1 2 x USB 3.2 Gen1 (internal)
Serial	1 x RS-232 1 x RS-232 (internal)
Video	1 x VGA
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT) 1 x Dedicated IPMI LAN port (Realtek RTL8211F)
Other Ports	DIO 8-channel programmable Audio SMBus IPMI 2.0 Redfish API 1 x PS/2 keyboard and mouse
Expansion
Expansion Interface	Slot 1 & 2: PCIe x16 (1 x Gen5 x16 or 2 x Gen5 x8 via jumper setting) Slots 3, 5, & 7: PCIe x16 (Gen5 x16 link) Slot 6: NVMe M.2 Key M 2280 (PCIe Gen4 x4)
Operating System
Operating System	Windows11, Windows10 , Linux
Power
Power Input	ATX connector
Power Requirements
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)
Dimensions	305mm x 244mm
Certification
Certification	CE
