IMB540
SKU
IMB540
Lead time 21-30 days

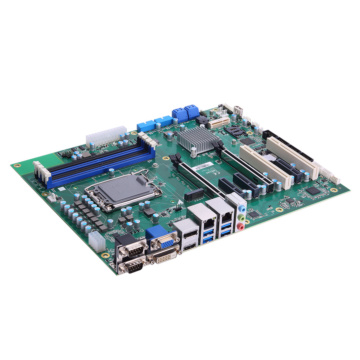

ATX Motherboard with LGA1700 Socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® R680E, USB 3.2 Gen 2x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI
- LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake-S)
- Four 288-pin DDR4-3200 ECC/non-ECC un-buffered Long-DIMM, up to 128GB
- DisplayPort++, VGA, DVI-D and HDMI with quad view supported
- Supports M.2 Key M 2280
- 4 USB 3.2 Gen 2 and 4 USB 3.2 Gen 1
- TPM 2.0 supported (optional)
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Up to 125W) |
| Security Hardware | TPM 2.0 (optional) |
| Chipset | Intel® R680E |
| Storage | 4 x SATA-600 with RAID 0/1/5/10 M.2 M Key with 2280 in support of PCIe x4 via CPU |
| Memory | 4 x 288-pin DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory is available for Intel® R680E only) |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 (internal, pin header) 1 x USB 2.0 (internal, 180D type A) |
| USB 3.1 | 4 x USB 3.2 Gen2 (rear I/O) 4 x USB 3.2 Gen1 (internal) |
| Serial | 4 x RS-232 (internal box header) 2 x RS-232/422/485 (rear I/O) |
| Video | 1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort++ |
| Ethernet | 1 x 10/100/1000/2500 Mbps (Intel® I225-LM) 1 x 10/100/1000 Mbps (Intel® I211-AT) |
| Other Ports | DIO 8-channel programmable HD Codec audio as MIC-in/Line-in/Line-out 1 x PS/2 keyboard (internal box header) |
| Expansion | |
| Expansion Interface | 2 x PCIe Gen4 x16 slot (signal: 1 x PCIe x16 or 2 x
PCIe x8) 3 x PCIe x4 slot open-ended (1 x Gen3 + 2 x Gen4) (signal by PCH) 1 x PCIe Mini Card slot (signal: PCIe x1) 2 x 32-bit PCI slot, default clock is 33 Mhz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH) |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | ATX connector |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 305mm x 244mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
