IMB525

SKU

IMB525VDHGGA-C246

Lead time 14-22 days

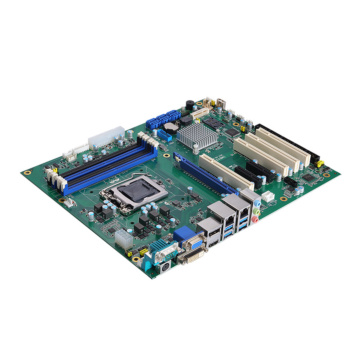

ATX Motherboard with LGA1151 Socket 8th Gen Intel® Core™, Xeon® E Processor, Intel® C246, USB 3.1 Gen2, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort, DVI-D, and HDMI

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

LGA1151 socket 8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Coffee Lake)
Four 288-pin DDR4-2666/2400 ECC DIMM for up to 64GB of memory
DisplayPort, DVI-D, HDMI and VGA with triple-view supported
6 SATA-600 with RAID 0/1/5/10
1 PCI Express Mini Card slot (optional)
2 USB 3.1 Gen2 and four USB 3.1 Gen1
TPM 2.0 supported (optional)

Form Factor
Form Factor	ATX

System
Processor	LGA1151 socket 8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor
Integrated Graphics	Yes
Security Hardware
Chipset	Intel® C246
Storage	6 x SATA-600 with RAID 0/1/5/10
Storage Support
Memory	4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 64GB
Graphics	Intel HD graphics Integrated
I/O Ports
USB 2.0	7 x USB 2.0
USB 3.0
USB 3.1	2 x USB 3.1 Gen2 (rear I/O) 4 x USB 3.1 Gen1 (rear I/O, internal box header)
Serial	4 x RS-232 (Internal box header) 2 x RS-232/422/485 (1 rear I/O; 1 internal box header)
Video	1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-LM)
Other Ports	DIO MIC-in/Line-in/Line-out 1 x PS2 keyboard and mouse
Expansion
Expansion Interface	1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 (optional) 1x PCIe x16 slot (w/o bifurcation) 2 x PCIe x4 slot 4 x PCI slot
Operating System
Operating System	Windows 10
Power
DC Input / Source Voltage
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)
Dimensions	305 x 244 mm
Certification
Certification	CE

More Information

More Information
Manufacturer / Brand	Axiomtek
Socket	LGA 1151
Form Factor	ATX
