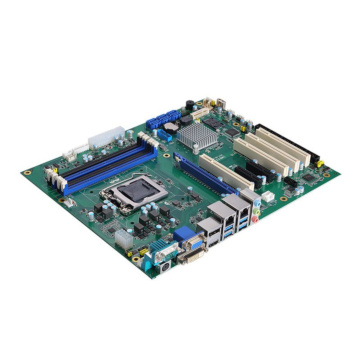

IMB523R

SKU

IMB523RVDHGGA-Q370

Lead time 14-22 days

LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
DisplayPort, DVI-D, HDMI and VGA with triple-view supported
5 SATA-600 with RAID 0/1/5/10
1 PCI Express Mini Card slot
Two USB 3.1 Gen2 and four USB 3.1 Gen1
TPM 2.0 supported (optional)

Form Factor
Form Factor	ATX

System
Processor	LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor
Integrated Graphics	Yes
Security Hardware
Chipset	Intel® Q370
Storage	5 x SATA-600 with RAID 0/1/5/10
Storage Support
Memory	4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
Graphics	Intel HD graphics Integrated
I/O Ports
USB 2.0	7 x USB 2.0
USB 3.0
USB 3.1	6x USB3.1
Serial	4 x RS-232 (Internal box header) 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
Video	1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort++
Ethernet	1 x 10/100/1000 Mbps (Intel® i219-LM, iAMT) 1 x 10/100/1000 Mbps (Intel® i211-AT)
Other Ports	DIO MIC-in/Line-in/Line-out 1 x PS/2 keyboard and mouse TPM TPM 2.0 (optional) SMBus
Expansion
Expansion Interface	1 x PCIe x16 slot 2 x PCIe x4 slot 4 x PCI slot 1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA
Operating System
Operating System	Windows 10
Power
DC Input / Source Voltage	24+8 pin ATX connector
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)	0.7kg
Dimensions	305 x 244 mm
Certification
Certification	CE
