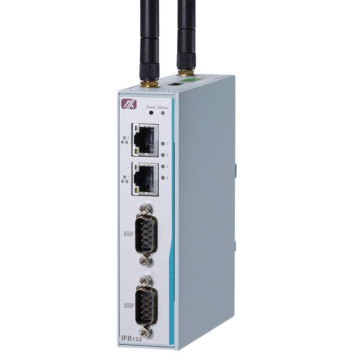

IFB122-FL-DC
SKU
IFB122-FL-DC
Lead time 21-30 days
- Robust DIN-rail fanless embedded system with i.MX 6UL processor, 2 COM, 2 LANs and DIO (2-in/1-out)
- RISC-based (i.MX 6UltraLite) processor 528 MHz
- 256MB DDR3 SDRAM onboard
- 4GB eMMC flash onboard
- 1 PCI Express Mini Card slot (Wi-Fi or 3G/4G)
- 2 digital inputs and 1 digital output
- Power input range of 9V to 48V DC with terminal block
- Embedded embedded Linux operating system (Yocto)
- Fanless and compact design
- Wide operating temperature range from -40°C to +70°C
| System | |
| Processor | NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x eMMC 4GB flash onboard |
| Memory | 256 MB DDR3-1600 onboard |
| GPU / Graphics | |
| I/O Ports | |
| USB 2.0 | 1x USB 2.0 |
| USB 3.0 | |
| Serial | 2 x RS-232/422/485 |
| Video | |
| Ethernet | 2 x 10/100 Mbps Ethernet |
| Other Ports | 1 x 3-CH DI/DO 1 x Relay |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB signal) 1 x SIM slot |
| Operating System | |
| Operating System | Yocto 1.8.1 (Fido) Kernel: 3.14.52 |
| Power | |
| DC Input / Source Voltage | 9-48V DC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.3 kg |
| Dimensions | 31 x 100 x 125 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , IP40 |
| Mounting | Din-rail, Wall mount |
| Certification | |
| Certification | CE, FCC certified |
| Cooling | Fanless |
|---|
