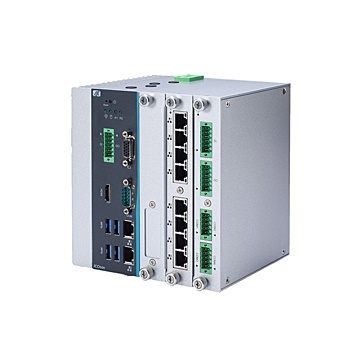

ICO500-518-Celeron

Details

* 7th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake-U)
* 2 PIM (Plug-in I/O Module) slots
* Fanless and compact design
* Wide operating temperature range from -40°C to +70°C
* 12 to 48 VDC wide range power input
* OVP, UVP, OCP, RPP power protection design
* 1 swappable 2.5" SATA drive tray

Specifications

System
Processor	Intel® Celeron® 3965U 2C @ 2.2 Ghz
CPU Performance
Security Hardware
Chipset	SoC integrated
Storage	2 x 2.5" HDD drive bay 1 x mSATA
Storage Support
Memory	1 x DDR4-1866/2133 SO-DIMM, up to 16GB
Memory (RAM)
I/O Ports
USB 2.0	-
USB 3.0	4x USB 3.0
Serial	1x RS-232/422/485
Display	1 x VGA
Ethernet	2 x GbE LAN
Other Ports	1 x Isolated DIO (4-in/4-out)
Operating System
Operating System	Windows 10 Pro, Windows 10 IoT, Linux
Power
DC Input / Source Voltage	12 to 48 VDC, OVP, UVP, OCP, RPP power protection design
Power Management
Expansion Slots
Expansion	2 x Full-size PCI Express Mini Card slot 1 x External SIM card slot 2 x PIM slot

Operating Temperature
Operating Temperature	-40°C to +70°C -40°C to +60°C with PIM200
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	4.4 kg
Dimensions	145 x125 x155 mm
Enclosure
Bezel
Material	Aluminum
Mounting	DIN-rail (standard) Wall mount (optional)
Vibration	3 Grms with SSD, DIN-rail/wall mounting (5 to 500Hz, X/Y/Z direction; random)
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE / FCC
