ICO330
SKU
ICO330-x
Lead time 21-30 days
0.00EUR

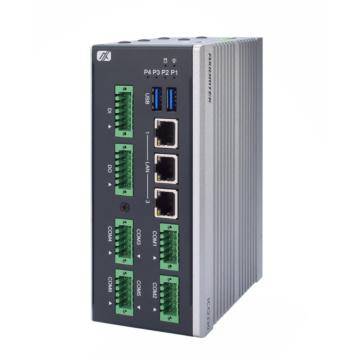

DIN-rail Fanless Embedded System with Intel Atom® x6212RE / x6414RE Processor, 3x Isolated LAN, Isolated COM and DIO
- Cost-effective with fanless design
- Intel Atom® x6212RE / x6414RE processor
- 6 isolated COM, isolated DIO (8-in/8-out), 3x 2.5 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Supports cold boot at -40°C
| System | |
| Processor |
Intel Atom® x6212RE processor, 1.2GHz/2C/6W Intel Atom® x6414RE processor, 1.5GHz/4C/9W |
| Security Hardware | TPM2.0 |
| Chipset | SoC integrated |
| Storage | 1 x mSATA (occupied 1 x PCI Express Mini Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) 1 x 8G eMMC on board |
| Memory | 1 x DDR4-3200 SO-DIMM, up to 32GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x USB3.1 |
| Serial | 2 x Isolated RS-232/422/485 (Phoenix Type) 4 x Isolated RS-232/422/485 (4-wire, Phoenix Type) Isolation voltage: 1.5 kV |
| Video | 1 x HDMI |
| Ethernet | 3 x RJ-45 isolated 2.5 GbE LAN (Intel® i226-IT) Isolation voltage: 1.5 kV |
| Other Ports | Isolated DIO 8-bit |
| Expansion | |
| Expansion Interface | 1 x M.2 (USB 3.0, PCIe; for 5G & NVMe) (optional) 1 x Full-size Rev.1.2 PCI Express Mini Card slot with PCIe and USB signal (for LTE/Wi-Fi module) 1 x Half-size Rev.1.2 PCI Express Mini Card slot with USB/mSATA signal (for Wi-Fi/mSATA) 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card) |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | 1 x Terminal block, 9 to 36 VDC, typical 12/24V |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 72 x 110 x 155 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail , Wall Mounting |
| Certification | |
| Certification | CE (Class A), FCC (Class A) |
| Cooling | Fanless |
|---|---|
| CPU Family | Elkhart Lake (Atom/Celeron/Pentium) |
| Operating Temp | Wide Temp -40..70C |
