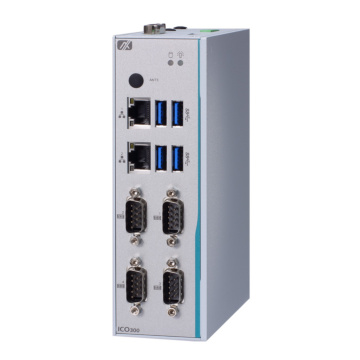

ICO300-83B-N4200-4ICOM
SKU
ICO300-83B-N4200-4ICOM
In Stock
0.00EUR
- Cost-effective with fanless and cableless design
- Intel® Pentiium® processor N4200 CPU
- 4 Isolated COM, 4 USB, 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -40°C to +70°C
- 12 to 24 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- AMS.AXView intelligent remote monitoring software for IIoT
| System | |
| Processor | Intel® Pentium® N4200 4C @1.1 GHz, TDP: 6W |
| Security Hardware | |
| Chipset | SoC integrated |
| Storage | 1 x mSATA (occupied 1 x PCI Express Mini Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) |
| Memory | 1 x SO-DIMM DDR3L-1866, up to 8GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 4x USB 3.0 |
| Serial | 4 x DB9 Isolated RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 2 x RJ-45 isolated 10/100/1000 Mbps (Intel® i211-AT) - Isolation voltage: 1.5 kV |
| Other Ports | DIO 8-bit |
| Expansion | |
| Expansion Interface | 2 x Full-size Rev. 1.2 PCI Express Mini Card slot: 1 x USB/PCIe with SIM socket 1 x mSATA/USB/PCIe |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12~24VDC Terminal block |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 155 x 110 x 48 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail , Wall Mounting |
| Certification | |
| Certification | CE, FCC |
| Cooling | Fanless |
|---|
