ICO230

SKU
ICO230-iMX8MP-A
Coming

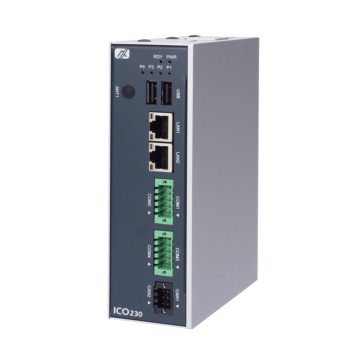

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 8MP Processor, 4 Isolated COM, and 2 Isolated CAN FD

  • Fanless design
  • RISC-based i.MX 8M-Plus processor
  • 2GB LPDDR4 onboard
  • 16GB eMMC onboard
  • Isolated COM and CAN FD ports
  • 9 to 48 VDC wide range power input with terminal block
  • Wide operating temperature range from -40°C to +70°C
System
Processor NXP i.MX 8M-PLUS ARM CORTEX 4xA53 + M7 Industrial 1.6 GHz
Security Hardware TPM 2.0
Chipset SoC integrated
Storage 1 x 16GB eMMC onboard
1 x Micro SD card slot
Memory 1 x 2GB LPDDR4 onboard
Graphics Integrated, HDMI output
I/O Ports
USB 2.0 2x USB2.0
USB 3.0
Serial 4 x Isolated COM with terminal block (RS-232/422/485)
Video 1 x HDMI
Ethernet 2 x 10/100/1000 Mbps (Realtek® RTL8211FDI)
1.5 KV magnetic isolation protection
Other Ports 1 x Console (Mini USB)
2 x Isolated CAN FD with terminal block
Expansion
Expansion Interface 1 x Full-size Rev. 1.2 PCI Express Mini Card slot with PCIe/USB signal (with SIM socket)
1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal
Operating System
Operating System Yocto 4.0 LTS (Kirkstone)
Kernel: 5.15.52
Power
DC Input / Source Voltage 9 to 48 VDC (typical 12/24/36V) with terminal block
OVP, UVP, OCP, RPP power protection design
Operating Temperature
Operating Temperature -40°C ~ +70°C with W.T. SSD
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 0.7 kg
Dimensions 48 x 110 x 155mm
Enclosure
Material Aluminum / Steel
Mounting DIN-rail, wall mount (optional)
Certification
Certification CE (Class A), FCC (Class A)
CE/FCC EN 55035 (Class A), FCC part 15 B (Class A)
More Information
Manufacturer / BrandAxiomtek
