ICO120-E3350

Customize ICO120-E3350

* Required Fields

Your Customization
ICO120-E3350
ICO120-E3350

0.00EUR

Summary
    SKU
    ICO120-E3350
    Lead time 21-30 days

    0.00EUR

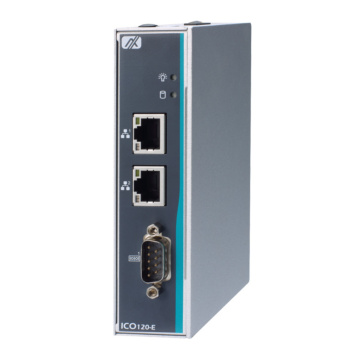

    DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM/CAN/DIO, 2 LAN, and 2 USB

    • Extreme cost-effective with fanless and cableless design
    • Intel® Celeron® processor N3350, reliable F1 stepping version CPU
    • COM/CAN/DIO, 2 USB, and 2 2.5GbE LAN
    • Wide operating temperature range from -40°C to +70°C
    • 9 to 36 VDC wide range power input
    • OVP, UVP, OCP, RPP power protection design
    • eAPI for intelligent remote monitoring software integration
    System
    Processor Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W
    Security Hardware
    Chipset SoC integrated
    Storage 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
    EMMC (optional)
    Memory 1 x SO-DIMM DDR3L-1866, up to 8GB
    Graphics
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0
    Serial 1 x DB9 RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ-45 isolated 2.5GbE Ethernet (Intel® I226-IT)
    Isolation voltage: 1.5 kV
    Other Ports DIO 8-bit
    CAN 2.0 A/B, 1 Mbps bitrate with SocketCAN & J1939 supported
    Expansion
    Expansion Interface 1 x Full-size Rev. 1.2 PCI Express Mini Card slot with PCIe/USB signal (with SIM socket)
    1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal
    Operating System
    Operating System Windows® 10 / LINUX
    Power
    DC Input / Source Voltage Power Input Voltage 12~24VDC
    Terminal block
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD
    Humidity Range 0% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.0 kg
    Dimensions 155 x 110 x 48 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Din-rail , Wall Mounting
    Certification
    Certification CE (Class A), FCC (Class A), UL
    EN 55032 (Class A), EN 55035
    FCC part 15 B (Class A)
    More Information
    CoolingFanless
    CPU FamilyApollo Lake (Celeron/Pentium)
    Operating TempWide Temp -40..70C
