ICO110-N3350

Customize ICO110-N3350

* Required Fields

Your Customization
ICO110-N3350
ICO110-N3350

0.00EUR

Summary
    SKU
    ICO110-N3350
    Coming

    0.00EUR

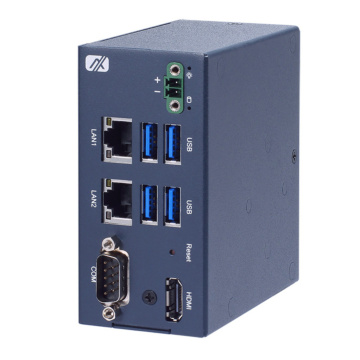

    Ultra-Compact DIN-Rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM, 2 LAN, 4 USB, HDMI, WT

    • Super compact size with fanless and cableless design
    • Intel® Celeron® processor N3350, reliable F1 stepping version CPU
    • COM, 4 USB, and 2 GbE LAN
    • Wide operating temperature range from -40°C to +70°C
    • 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
    • OVP, UVP, OCP, and RPP power protection design
    • AXEAPI for intelligent remote monitoring software integration
    System
    Processor Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W
    Security Hardware TPM 2.0
    Chipset SoC integrated
    Storage 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
    Memory 1 x SO-DIMM DDR3L-1866, up to 8GB
    Graphics Integrated, HDMI output
    I/O Ports
    USB 2.0
    USB 3.0 4x USB3.0
    Serial 1 x DB9 RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ-45 isolated GbE LAN
    Realtek RTL8111HN for ICO110-N3350-AC
    Realtek RTL8119I for ICO110-N3350-AW
    Other Ports
    Expansion
    Expansion Interface
    Operating System
    Operating System Windows® 10 / LINUX
    Power
    DC Input / Source Voltage 1 x Terminal block, 9 to 36 VDC (typical: 12 to 24 VDC)
    Operating Temperature
    Operating Temperature ICO110-N3350-AC
    0°C ~ +50°C with N.T. SSD
    ICO110-N3350-AW
    -40°C ~ +70°C with W.T. SSD
    Humidity Range 0% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 0.3 kg
    Dimensions 100 x 100 x 48 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Din-rail , Wall Mounting
    Certification
    Certification CE (Class A), FCC (Class A)
    CE/FCC EN 55035 (Class A), FCC part 15 B (Class A)
    More Information
    Manufacturer / BrandAxiomtek
    CoolingFanless
    Operating TempWide Temp -40..70C
