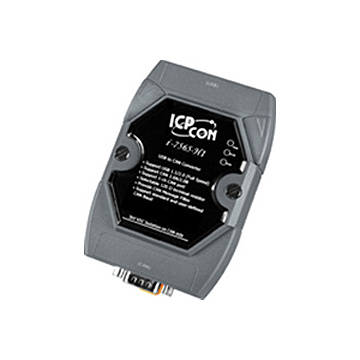

I-7565-H1 USB CAN Converter
SKU
I-7565-H1
Lead time 14-22 days
High Performance intelligent USB to 1- port CAN bus Converter
Details
*Fully compliant with USB 1.1/2.0(Full Speed)
*Fully compatible with the ISO 11898-2 standard
*Support both CAN2.0A and CAN2.0B
*No external power supply (powered by USB)
*Integrated with one or two CAN bus channels
*Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
*Support CAN bus acceptance filter configuration
*Time-stamp of CAN message with at least ±1ms precision
*Support firmware update via USB
*Provide utility tool for users module setting and CAN bus communication testing conveniently
*Provide API library for users' program development easily
*Fully compatible with the ISO 11898-2 standard
*Support both CAN2.0A and CAN2.0B
*No external power supply (powered by USB)
*Integrated with one or two CAN bus channels
*Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
*Support CAN bus acceptance filter configuration
*Time-stamp of CAN message with at least ±1ms precision
*Support firmware update via USB
*Provide utility tool for users module setting and CAN bus communication testing conveniently
*Provide API library for users' program development easily
| I/O | CAN bus |
|---|---|
| Manufacturer / Brand | ICP DAS |
| Connection | USB |
