HELIO-921CPR
SKU
HELIO-921CPR
Lead time 21-30 days
0.00EUR

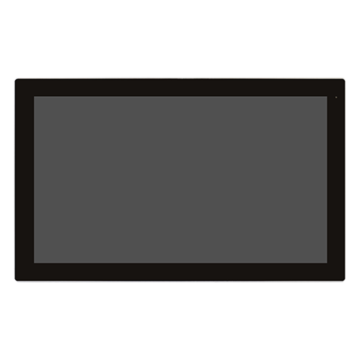

21.5” Modular Design, 11th Gen. Intel Core i3/i5 Fanless Industrial Compact Size Panel
- 21.5” Industrial Compact Size Panel PC
- Flat Front Panel Touch Screen with IP66 front bezel
- Fanless Design
- 11th Gen. Intel Core i3/i5 Processor
- 2 x 260Pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
- DC 9~36V Wide-Ranging Power Input
- Support expansion via Full-size Mini-PCIe and M.2 slots
- Support TPM2.0 hardware security
- High Brightness 1,000 nits for option
| System | |
| Processor | 11th Gen. Intel Core i3/i5 Cpu |
| CPU Performance | |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x M.2 M-Key 2280 (Support Pcie/SATA) |
| Storage Support | |
| Memory | 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB |
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 800::1 |
| Brightness | 250 nits |
| Viewing Angle | 170/170 |
| Number of Colors | 16.2M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.0 |
| Serial | 1x RS-232 |
| Video | 1 x DP / HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-out x 1 |
| Operating System | |
| Operating System | Windows11/Windows 10 |
| Power | |
| DC Input / Source Voltage | 9-36VDC 1 x Terminal block |
| Power Management | |
| Expansion Slots | |
| 1 x Full-size PCI-Express Mini Card slot 1 x M.2 Key E 2230 (for Wi-Fi) |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6.5 kg |
| Dimensions | 541 x 333 x 59 mm |
| Enclosure | |
| Bezel | IP66 Front |
| Material | Aluminum |
| Mounting | Panel , VESA |
| Certification | |
| Certification | CE/FCC |
| Cooling | Fanless |
|---|---|
| Display Size | 15.6" |
| Touch type | Projected Capasitive (PCAP) |
