GP-3100

Customize GP-3100
GP-3100 Barebone

* Required Fields

Your Customization
GP-3100
GP-3100

0.00EUR

Summary
    SKU
    GP-3100
    Coming

    0.00EUR

    14/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

    • Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
    • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
    • 4x 2.5GbE LAN and optional 2x 10GbE LAN
    • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
    • 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
    • 1 x M.2 Key B Type 2280 Socket for Add-on Card Expansion
    • 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm) , 1x M.2 key M for NVMe SSD
    • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
    • Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Vehicle Mount)
    • Wide Operating Temperature -40°C to 70°C

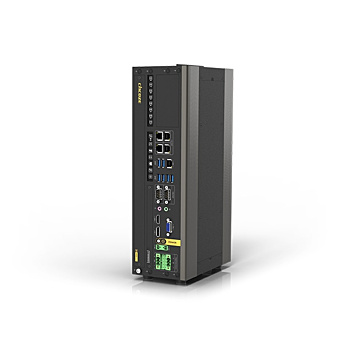

    main product photo
    System
    Processor Supports 13th/12th Gen Intel® Core™ Processors
    CPU Performance
    Security Hardware
    Chipset Intel R680E Chipset
    Storage 4x 2.5” Front Accessible SATA3 HDD/SSD Bay

    1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD

    1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD
    Storage Support Support RAID 0/1/510
    Memory 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB
    Graphics Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
    Integrated Intel® UHD Graphics 730: Core™ i3
    Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
    I/O Ports
    USB 2.0
    USB 3.0 6x 5Gbps USB 3.2 Gen1, Type A
    Serial 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
    Video 1 x DisplayPort
    1 x HDMI
    1 x VGA
    Ethernet 4x 2.5GbE LAN , RJ-45 (Intel I225)
    1x Gbe LAN, RJ-45, (Intel I219)
    Other Ports Mic-in/Line-out
    1x Remote Power On/Off Connector
    Expansion
    Expansion Interface Optional GPU Expansion Box
    - 1 x PCIe x 4 + 1 x PCIe x 16
    - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4

    1x M.2 Key E 2230 Socket, Supports Intel CNVi Module
    1x M.2 Key B 2280 Socket, Support Add-on Card Expansion (PCIe Gen3x1)
    1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion

    1x CMI (Combined Multiple I/O) High Speed Interface
    1x CMI (Combined Multiple I/O) Low Speed Interface
    2x SIM Socket
    Operating System
    Operating System Windows® 10 / Windows 11 / Linux
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +60°C with W.T. SSD, 60W TDP CPU
    -40°C ~ +50°C with W.T. SSD, 80W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution 2x Fan Kits ( Air-flow isolated from the electronics )
    Dimensions / Weight
    Weight (kg) 7.7 kg
    Dimensions 105 x 195 x 370 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification EMC:
    CE, UKCA, FCC, ICES-003 Class A
    EN 50155 (EN 50121-3-2 Only)
    E-mark (Pending)

    EMI:
    CISPR 32 Conducted & Radiated: Class A
    EN/BS EN 50121-3-2 Conducted & Radiated: Class A
    EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
    EN/BS EN61000-3-3 Voltage fluctuations & flicker
    FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A

    EMS:
    EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
    EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
    EN/IEC 61000-4-5 Surges: AC Power: 2 kV
    EN/IEC 61000-4-6 CS: 10V
    EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
    EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

    Fire Protection:
    EN 45545-2
    More Information
    More Information
    Manufacturer / BrandCincoze
    CoolingChassis Fan
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -40..70C
