GP-3000
SKU
GP-3000
Lead time 21-30 days
0.00EUR

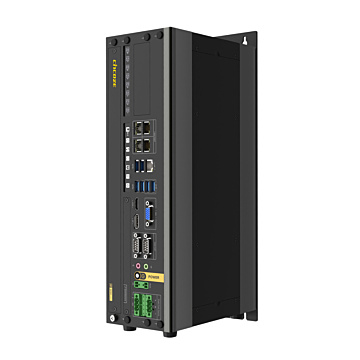

9th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W
- Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)
- 2 x DDR4 SO-DIMM Sockets, Supports ECC/non ECC type up to 2666 MHz, 64GB
- 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
- 1 x M.2 M Key Socket (NVMe), 1 x M.2 E Key Socket (CNVi)
- 2 x Front Accessible SIM Card Slots for Signal Redundancy
- CMI Technology for Various I/O Module Expansions
- CFM Technology for Power Ignition Sensing & PoE Function
- Versatile Mounting Methods (Wall / Stand / Face-up / 19" Rack Mount)
- Military Standard Shock & Vibration Proof
| System | |
| Processor | Supports 9th/8th Gen Intel® Xeon®/Core™ CPU (35W / 65W / 80W) |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel C246 |
| Storage | 4x 2.5” Front Accessible SATA3 HDD/SSD Bay 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)) |
| Storage Support | Support RAID 0/1/510 |
| Memory | 2x DDR4 SO-DIMM Socket, Support Up to 64GB |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A |
| Serial | 2x RS-232/422/485 |
| Video | 1 x DisplayPort 1 x DVI-I 1 x VGA |
| Ethernet | 5x GbE LAN , RJ-45 |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector 1 x Remote Reset |
| Expansion | |
| Expansion Interface | Optional GPU Expansion Box - 1 x PCIe x 4 + 1 x PCIe x 16 - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4 1x M.2 Key E 2230 Socket, Supports Intel CNVi Module 1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD 1x CMI (Combined Multiple I/O) High Speed Interface 1x CMI (Combined Multiple I/O) Low Speed Interface 2x Full-size Mini-PCIe Sockets 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +60°C with W.T. SSD, 60W TDP CPU -40°C ~ +50°C with W.T. SSD, 80W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive – Fanless, Optional Fan |
| Dimensions / Weight | |
| Weight (kg) | 8.5 kg |
| Dimensions | 105 x 195 x 370 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Fanless |
| CPU Family | Coffee Lake Refresh (9th Gen Core i3/i5/i7) |
| Operating Temp | Wide Temp -40..70C |
