GOT818A-TGL-WCD

Customize GOT818A-TGL-WCD
GOT818A-TGL-WCD

* Required Fields

Your Customization
GOT818A-TGL-WCD
GOT818A-TGL-WCD

0.00EUR

Summary
    SKU
    GOT818A-TGL-WCD
    Lead time 21-30 days

    0.00EUR

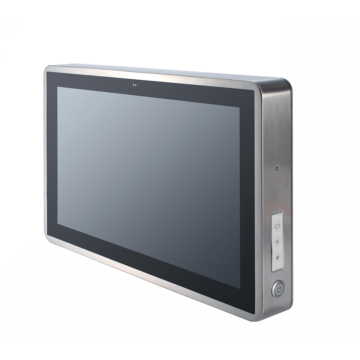

    18.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E and Flat Bezel Design (-20°C to +50°C)

    • 18.5" FHD TFT flat bezel LCD display
    • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
    • Full stainless-steel enclosure with SUS 304
    • -20°C to +50°C wide operating temperature range
    • Fanless design with Intel® Core™ i5-1145G7E processor
    • Wi-Fi kit for wireless network connectivity (optional)
    • 12 to 24 VDC wide range power input
    System
    Processor Intel® Core™ i5-1145G7E 2.6 Ghz


    Memory 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
    Chipset SoC
    Storage 1 x 2.5" SATA HDD (9.5 mm height)
    Expansion 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)


    Display
    Screen Size 18.5" FHD TFT LCD
    Screen Resolution 1920*1080
    Display Ratio wide
    Contrast Ratio
    Brightness 350 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 4x USB2.0
    USB 3.0
    Serial 2 x RS-232/422/485
    Video
    Ethernet 1 x 2.5GBase-T Ethernet with Intel® I225 (X-coded)
    Other Ports
    Operating System
    Operating System Windows 10 /Windows 11
    Power
    DC Input / Source Voltage 12-24V DC
    Power Comsumption 72W
    Operating Temperature
    Operating Temperature -20ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 7.3kg
    Dimensions 480.0 x 55 x 302.4 mm
    Enclosure
    Protection IP66 ALL sides
    Material Stainless Steel (SUS 304)
    Mounting VESA


    Certification
    Certification CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
    More Information
    CoolingFanless
    Display Size18.5"
    Touch typeProjected Capasitive (PCAP)
    CPU FamilyTiger Lake (11th Gen Core i3/i5/7) Mobile
