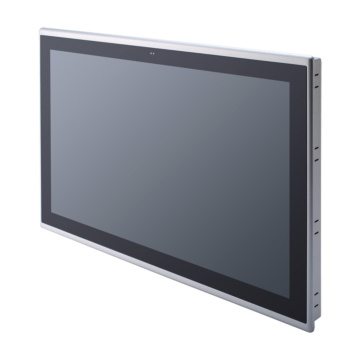

    21.5" FHD TFT Multi-touch Panel Computer with Intel® Celeron® Processor J6412

    • 21.5" FHD projected capacitive multi-touch widescreen
    • Fanless design with Intel® Celeron® processor J6412
    • Supports WLAN module and antenna (optional)
    • 2.5" SATA SSD
    • 2 LAN, 4 USB, 1 COM, 1 HDMI, and 1 VGA
    • IP65-rated aluminum front bezel
    • Supports panel mount, VESA mount, desktop stand, and wall mount
    System
    Processor Intel® Celeron® processor J6412 (TDP 12W) (Elkhart Lake)


    Memory 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM, up to 32GB
    Chipset SoC
    Storage 1 x mSATA
    1 x 2.5” SATA SSD (7 mm and 9.5 mm height; removable)
    Expansion 1 x Full-size PCI Express Mini Card slot (PCIe + SATA + USB)
    1 x M.2 Key E 2230 (for Wi-Fi)
    1 x Flexible I/O (default 2 x RS-232)


    Display
    Screen Size 21.5" FHD TFT LCD
    Screen Resolution 1920*1080
    Display Ratio wide
    Contrast Ratio
    Brightness 400 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 -
    USB 3.0 4 x USB3.2 (10Gbps)
    Serial 1 x RS-232/422/485
    Video 1 x HDMI
    1 x VGA
    Ethernet 1 x RJ-45 2.5Gb Base-T Ethernet (Intel® I226-LM with TSN)
    1 x RJ-45 1Gb Base-T Ethernet (Intel® I210-AT)
    Other Ports dTPM 2.0
    1 x Phoenix-type connector for DC power input
    1 x Switch for power on/off (ATX)
    1 x Remote power switch
    1 x AT/ATX switch (DC type only)
    1 x Grounding hole (DC version)
    Operating System
    Operating System Windows 10 /Windows 11 / Linux
    Power
    DC Input / Source Voltage 9-36V DC
    Power Comsumption 72W (max)
    Operating Temperature
    Operating Temperature -10ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 7.7kg
    Dimensions 542.0 x 338 x 59.4 mm
    Enclosure
    Protection IP65 Front
    Material Aluminium chassis
    Mounting Panel / VESA


    Certification
    Certification CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
    More Information
    Manufacturer / BrandAxiomtek
    CoolingFanless
    Display Size21.5"
    Touch typeProjected Capasitive (PCAP)
    CPU FamilyElkhart Lake (Atom/Celeron/Pentium)
