GOT318A-ELK-WCD
SKU
GOT318A-ELK-WCD
Lead time 21-30 days
0.00EUR

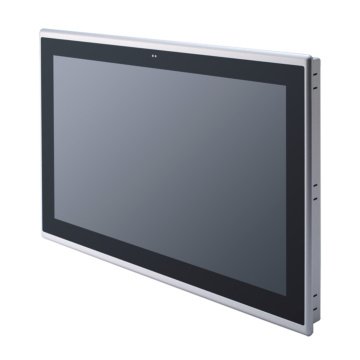

18.5" FHD TFT Multi-touch Panel Computer with Intel® Celeron® Processor J6412
- 18.5" FHD projected capacitive multi-touch widescreen
- Fanless design with Intel® Celeron® processor J6412 (Elkhart Lake)
- Supports WLAN module and antenna (optional)
- 2.5" SATA SSD
- 2 LAN, 4 USB, 1 COM, 1 HDMI, and 1 VGA
- IP65-rated aluminum front bezel
- Supports panel mount, VESA mount, desktop stand, and wall mount
- Supports proximity and ambient light sensors (optional)
| System | |
| Processor | Intel® Celeron® processor J6412 (TDP 12W) (Elkhart Lake) |
| Memory | 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM, up to 32GB |
| Chipset | SoC |
| Storage | 1 x mSATA 1 x 2.5” SATA SSD (7 mm and 9.5 mm height; removable) |
| Expansion | 1 x Full-size PCI Express Mini Card slot (PCIe + SATA
+ USB) 1 x M.2 Key E 2230 (for Wi-Fi) 1 x Flexible I/O (default 2 x RS-232) |
| Display | |
| Screen Size | 18.5" FHD TFT LCD |
| Screen Resolution | 1920*1080 |
| Display Ratio | wide |
| Contrast Ratio | |
| Brightness | 350 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4 x USB3.2 (10Gbps) |
| Serial | 1 x RS-232/422/485 |
| Video | 1 x HDMI 1 x VGA |
| Ethernet | 1 x RJ-45 2.5Gb Base-T Ethernet (Intel® I226-LM with
TSN) 1 x RJ-45 1Gb Base-T Ethernet (Intel® I210-AT) |
| Other Ports | dTPM 2.0 1 x Phoenix-type connector for DC power input 1 x Switch for power on/off (ATX) 1 x Remote power switch 1 x AT/ATX switch (DC type only) 1 x Grounding hole (DC version) |
| Operating System | |
| Operating System | Windows 10 /Windows 11 / Linux |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Power Comsumption | 69W (max) |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.9kg |
| Dimensions | 475.0 x 302 x 59.4 mm |
| Enclosure | |
| Protection | IP65 Front |
| Material | Aluminium chassis |
| Mounting | Panel / VESA |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
| Display Size | 18.5" |
| Touch type | Projected Capasitive (PCAP) |
| CPU Family | Elkhart Lake (Atom/Celeron/Pentium) |
