GOT317B-ADL-TRD
SKU
GOT317B-ADL-TRD
Lead time 21-30 days
0.00EUR

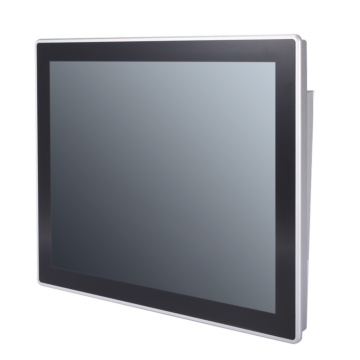

17" SXGA Fanless Touch Panel Computer with LGA1700 Socket 12th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor
- 17” SXGA LCD with 350 nits of brightness
- 5-wire resistive touch
- Supports one 2.5” SATA HDD/SSD
- Flat front panel touch screen with rugged IP65 front bezel
- Fanless design
- Supports WLAN module & antenna (optional)
- Supports 4 USB & 2COM ports
- TPM 2.0 onboard
- Swappable HDD Tray
- Supports panel mount, VESA mount, desktop stand, and wall mount
| System | |
| Processor | LGA1700 socket 12th gen Intel® Core™ i7/i5/i3 & Pentium® processor (up to 35W) |
| Memory | 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB |
| Chipset | Intel® H610 |
| Storage | 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable) |
| Expansion | 1 x M.2 Key E type 2230 with PCIe x1 and USB 2.0 1 x PCI Express Mini Card (USB+PCIe signal) 1 x Flexible IO window; supports COM3 (on board by option) |
| Display | |
| Screen Size | 17" FHD TFT LCD |
| Screen Resolution | 1280x1024 |
| Display Ratio | 4::3 |
| Contrast Ratio | |
| Brightness | 350 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | 5-wire Resistive Touch Screen |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2 x USB3.2 |
| Serial | 1 x RS-232/422/485 1 x RS-232 |
| Video | 2 x HDMI 1.4b |
| Ethernet | 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V) 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V) |
| Other Ports | TPM 2.0 1 x Phoenix-type connector for DC power input 1 x Switch for power on/off 1 x Remote power switch |
| Operating System | |
| Operating System | Windows 10 /Windows 11 |
| Power | |
| DC Input / Source Voltage | 12-24V DC |
| Power Comsumption | 120W |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 11.0kg |
| Dimensions | 398.0 x 77.5 x 330.4 mm |
| Enclosure | |
| Protection | IP65 Front |
| Material | Metal |
| Mounting | Panel mount VESA mount Desktop stand Wall mount |
| Certification | |
| Certification | CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2 FCC 47 CFR Part 15 Subpart B (Class A) UKCA RoHS standard |
| Cooling | Fanless |
|---|---|
| Display Size | 17" |
| Touch type | Resistive |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
