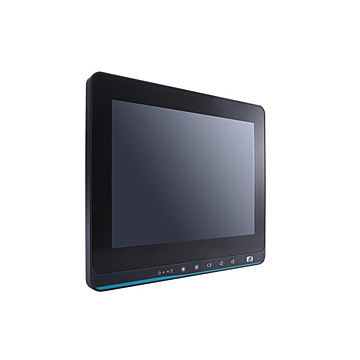

GOT110-316-J

* 10.4" XGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3350
* 2 GbE LANs, 4 USB and 2 COM
* IP65 rated front bezel and IPX1 rated back cover
* Peripheral support including MSR, RFID, Wi-Fi, Smart card reader and barcode scanner
* External AT/ATX mode selection switch
* Easy maintenance design for storage and memory
* Supports optional panel mount/wall mount/VESA arm/desktop stand
* Adjust RS-232/422/485 setting via BIOS
* Aluminum cover for the better thermal dissipation and reliability

LCD Specifications
10.4" XGA TFT LCD with LED backlight
Resolution : 1024 x 768
Brightness : 350 cd/m²

Touchscreen
5-wire flat resistive touch

Processor Core Logic System

CPU:
Intel® Celeron® processor N3350

System Chipset:
SoC

System Memory:
1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB

Ethernet
2 x RJ-45 GbE LAN

I/O Interface
1 x RS-232/422/485 (default RS-232, COM1)
1 x RS-232 (COM2)
4 x USB 3.0
1 x HDMI
1 x Audio (Line-out)
2 x 10/100/1000 Mbps Ethernet

Storage
1 x mSATA
1 x 2.5" SATA HDD

Expansion
1 x Full-size PCI Express Mini Card with mSATA
1 x Full-size PCI Express Mini Card with SIM slot

Power Supply
DC version: 12V/19V~ 24V DC adapter cable
AC version: 230V AC, 12 VDC 60W adapter

Software Support
Windows 10

Environment Specifications
Operating Temperature 0°C to 50°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)


Mechanical
Construction: Aluminium housing
Mounting: Panel Mounting , VESA-100
Weight: 2kg
Dimension: 259.43 x 43.5 x 232.73 mm

Safety: CE
