GOT110-316-PCT-PoE-PD

Lead time 14-22 days

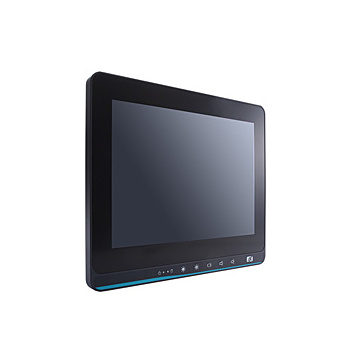

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron N3350, PoE PD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Datalehti

Ominaisuudet

* 10.4" XGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3350
* 1 GbE LAN, 1 PoE PD, 4 USB and 2 COM
* IP65-rated front bezel and IPX1 rated back cover
* External AT/ATX mode selection switch
* Easy maintenance design for storage and memory
* Supports panel mount, wall mount, VESA arm and desktop stand
* Adjustable RS-232/422/485 setting via BIOS
* Aluminum cover for the better thermal dissipation and reliability

Spesifikaatiot

System
Processor	Intel® Celeron® processor N3350
CPU Performance
Security Hardware
Chipset	SoC
Storage	1 x SATA 1 x mSATA
Storage Support
Memory	1 x SO DIMM DDR3L 1600MHz up to 8 GB
Memory (RAM)
Display
Screen Size	10.4" XGA TFT LCD
Screen Resolution	1024x768
Display Ratio	4 ::3
Contrast Ratio
Brightness	350nits
Viewing Angle	160/160
Number of Colors
Touch Screen
Touchscreen	Projected Capacitive (Multi-touch)
I/O Ports
USB 2.0	-
USB 3.0	4x USB 3.0
Serial	1x RS-232 1x RS-232/422/485
Video	-
Ethernet	1 x RJ45 GbE 1 x RJ45 PoE PD
Other Ports
Operating System
Operating System	Windows 10
Power
DC Input / Source Voltage	Power Device (PD): follows IEEE 802.3at (25.5W)
Power Management
Expansion Slots
	1 x M.2 Key E for wireless module 1 x Full-size PCI Express Mini Card slot
Multimedia
Integrated Speakers	-
Operating Temperature
Operating Temperature	0ºC to 50ºC
Humidity Range	10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	1,8 kg
Dimensions	415 x 43,5 x 233mm
Enclosure
Bezel
Material	Plastic, Metal
Mounting	Panel , VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE / FCC

More Information

More Information
Cooling	Fanless
Display Size	10.4"
Touch type	Projected Capasitive (PCAP)
