GM-1100
SKU
GM-1100
Coming
0.00EUR

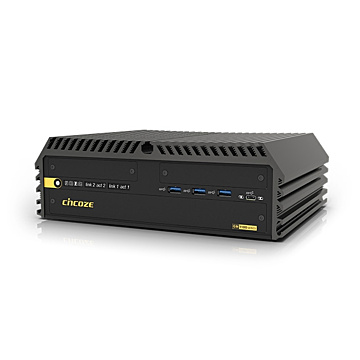

14/13/12th Gen Intel® Core™ Series Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket
- Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- Supports 1x MXM 3.1 Type A/B form factor GPU module expansion.
- 1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector
- 1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage
- 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 2 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
- Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
- Wide operating temperature -40°C to 70°C
| System | |
| Processor | Supports 13th/12th Gen Intel® Core™ Processors |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel R680E Chipset |
| Storage | 2 x 2.5” SATA HDD drive bay (max. up 15mm height) 1 x M.2 Key M Type 2280 Socket, Support PCIe Gen4 x4 NVMe SSD or SATA SSD (SATA3.0) 2 x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 4x2 NVMe SSD or SATA SSD (SATA3.0) |
| Storage Support | |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB |
| Audio | Realtek® ALC888, High Definition Audio |
| Graphics | Integrated Intel® UHD Graphics
770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 1x 20Gbps USB3.2 Gen2 x2, Type C 3x USB 3.2 (Gen2 10Gbps) 4x USB 3.2 (Gen1 5Gbps) |
| Serial | 4 x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| Video | 1 x DisplayPort 1 x HDMI 1 x VGA |
| Ethernet | 2 x 10/100/1000Mbps (Intel® i219V-LM, i210-IT) |
| Other Ports | Line-out, 1 x Mic-in 1 x Remote Power On/OFF 2 x External Fan Connectors |
| Expansion | |
| Expansion Interface | 1 x MXM Carrier Board Interface for MXM GPU Module 1 x CMI (High Speed) 1 x CMI (Low Speed) 1 x CFM IGN interface 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion 2x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion 2 x SIM sockets 2 x Antenna holes |
| Operating System | |
| Operating System | Windows® 11 / Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 9-48V DC Input 230V AC-DC adapter |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C , With Wide-Temp SSD (35W CPU, non GPU) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive cooling Optional external Chassis FAN module (needed for high performance CPU & GPU) |
| Dimensions / Weight | |
| Weight (kg) | 4.7 kg |
| Dimensions | 260 x 200 x 85 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) E-mark (Pending) |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Fanless |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
