FSP FSP060-1D01 60W Power Supply
SKU
FSP060-1D01
In Stock

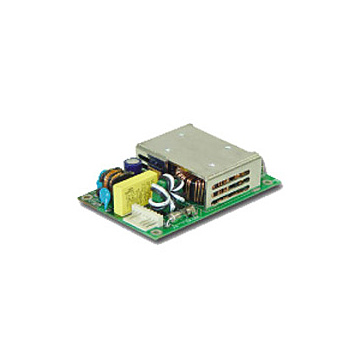

Small size 60W industrial open frame power supply.
Details
* High efficiency
* Low ripple & noise
* Output over voltage protection
* Output short circuit protection
* Over power protection
* 100% burn-in under high ambient temperature (60°C)
* Vacuum-impregnated transformer
* MTBF: 50,000 hours
* 100% Hi-pot tested
* Line input fuse protection
* ESD, surge protection
* Low ripple & noise
* Output over voltage protection
* Output short circuit protection
* Over power protection
* 100% burn-in under high ambient temperature (60°C)
* Vacuum-impregnated transformer
* MTBF: 50,000 hours
* 100% Hi-pot tested
* Line input fuse protection
* ESD, surge protection
Specifications
DC voltage range: 9.6V ~ 14.4V
Watt: 60W
Dimension: 96.1 x 64 x 20 mm
Ripple & Noise Limitations: +5V/30mV
MTBF: 50,000 hours at full load at 25°C
Operating temperature: 0°C to +50°C
Storage temperature: -30°C to +80°C
Relative humidity: -5% to 95% non-condensing
Watt: 60W
Dimension: 96.1 x 64 x 20 mm
Ripple & Noise Limitations: +5V/30mV
MTBF: 50,000 hours at full load at 25°C
Operating temperature: 0°C to +50°C
Storage temperature: -30°C to +80°C
Relative humidity: -5% to 95% non-condensing
