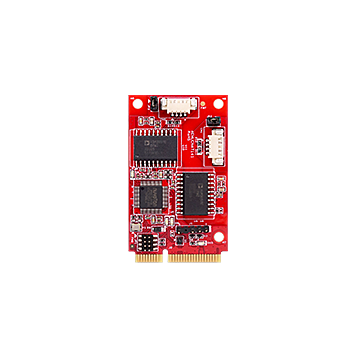

EMUC-B2S3-W1 Dual CANBUS2.0B, mPCIE

mPCIe to dual isolated CANbus 2.0B Module

• Compliant with ISO 11898-2
• Support baud rate 100/125/250/500(default)/800/1000K
• Support CAN message acceptance filter, listen-only mode
• Keep configuration after hardware reboot
• Up to 7,800 frame/s (receiving at 1Mbps, EID, 8byte data)
• Additional driver to support Linux SocketCAN
• Support SAE J1939/CANopen high layer protocol (Optional)
• Termination resistor enabled/disabled by jumper
• Complies with EN61000-4-5 2.5kV Surge protection
• Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
• Complaint with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
• Supports 3rd mounting hole and USB Pin header for out-ofminicard installation
• 30μ” golden finger, 3-year warranty
• Industrial Temperature (-40°C to +85°C) support
