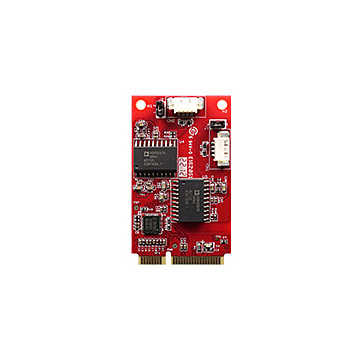

EMPC-B2S1
SKU
EMPC-B2S1-W1
In Stock
181.98EUR 145.00EUR
mPCIe to dual isolated CANbus 2.0B
- Compliant with PCI Express 1.1
- Meet the Requirements of the ISO 11898-1
- CAN bus 2.0B backward compatible with 2.0A
- Support baud rate 10/20/50/100/250/500/800/1000K
- Support CAN message acceptance filter
- Support Linux SocketCAN
- Compliant with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
- Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Termination resistor enabled/disabled by jumper
- 30μ” golden finger, 3-year warranty
- Industrial Temperature (-40°C to +85°C) suppor
| Module Type | |
| Function | CANbus |
| Form Factor | mPCIE |
| Input I/F | PCI Express 1.1 |
| Output I/F | 2x CAN bus 2.0B |
| Physical | |
| Output connector | 2x DB9 |
| Power Consumption | 2.5W |
| Dimensions (mm) | 30 x 50.9 x 8.25 |
| Temperature | Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environmental | Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| I/O | CAN bus |
|---|---|
| Connection | mPCIe |
