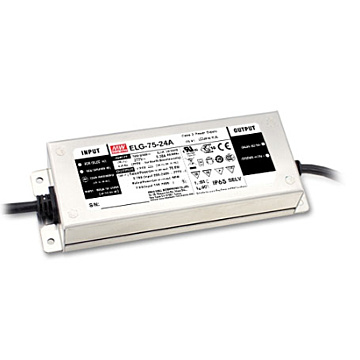

ELG-75-24B-3Y

• 100~305VAC input range

• Constant current (C.C.) output

• Constant power (C.P.) output

•

  Built-in active PFC function

•

  No load/standby power consumption <0.5W

•

  Metal case, IP67/IP65 design for indoor or outdoor installations

•

  Function options:
  output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)

•

  Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

•

  Suitable for LED street lighting and outdoor LED lighting

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output.

ELG-75 operates from 100-305VAC and offers models with different rated volta ranging between 12V and 48V.
High efficiency up to 90%, with the fanless design, the entire series is able to operate for -40- 80C case temerature under free air convection.
