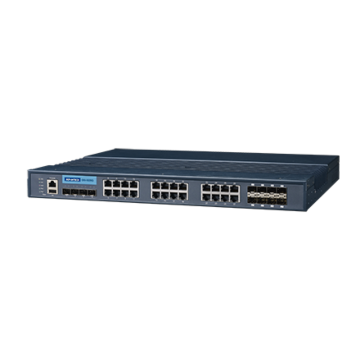

EKI-9228G-8CMI

SKU

EKI-9228G-8CMI

Lead time 21-30 days

IEC61850-3 20GE + 8GE Combo L2 Managed Switch, 48DC

16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit Combo ports
SFP socket for Easy and Flexible Fiber Expansion
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
Dual Power input and 2 relay output
-40 ~ 85˚C wide-range operating temperature

Ethernet Communication
Port Number	26
RJ-45 Port Connector	16 x RJ-45 8 x Combo RJ-45/SFP
RJ-45 Transmission speed	10/100M/1000Mbps
RJ-45 Transmission Distance	100m
Fiber Port Number	4
Fiber Port Interface	SFP
Fiber Transmission Speed	Depends on fiber module
Fiber Transmission Distance	Depends on fiber module
Protocol support
Modbux TCP
Modbus RTU
PROFINET
Ethernet/IP	Yes
EtherCAT
OPC UA
BACnet
Ethernet	Yes
Certification
Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5), EN 61000-6-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Power
Power Input	48V DC
Operating Current
Consumption	35W

PoE Information
PoE Port Number	-
PoE Output	-
PoE Budget	-
Switch Properties
MAC Table Size	8K
Packet Buffer Size	-
Switch Fabric Speed	-
Jumbo Frame	9 kb
Mechanical
Dimension	438 x 44 x 315.2mm
IP Rating	IP30
Enclosure	Metal
Weight
Mounting	1U 19” rack mount
Environment
Operating Temp	-40 ..85C
Storage Temp	-40 ..85C
Relative Humidity	10-95%
