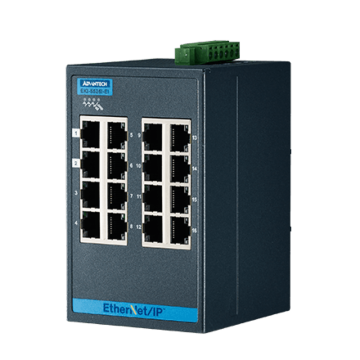

EKI-5526I-EI

SKU

EKI-5526I-EI

Lead time 21-30 days

16FE Managed Ethernet Switch support EtherNet/IP, -40~75℃

16 ports Fast Ethernet RJ-45 (EKI-5526/I-EI)
Entry-Level Managed Switch
IXM function enables fast deployment
Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate
Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB

Ethernet Communication
Port Number	16
RJ-45 Port Connector	16 x RJ-45
RJ-45 Transmission speed	10/100Mbps
RJ-45 Transmission Distance	100m
Fiber Port Interface	-
Fiber Transmission Speed	-
Fiber Transmission Distance	-
Protocol support
Modbux TCP
Modbus RTU
PROFINET
Ethernet/IP	Yes
EtherCAT
OPC UA
BACnet
Ethernet	Yes
Certification
Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Power
Power Input	12-48 VDC
Operating Current
Consumption	8W

PoE Information
PoE Port Number	-
PoE Output	-
PoE Budget	-
Switch Properties
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	3.2Gbps
Jumbo Frame	9,216 bytes
Mechanical
Dimension	74 x 120 x 84 mm
IP Rating	IP30
Enclosure	Metal
Weight	0.7kg
Mounting	Din-Rail
Environment
Operating Temp	-40 ..70C
Storage Temp	-40 ..85C
Relative Humidity	10-95%
