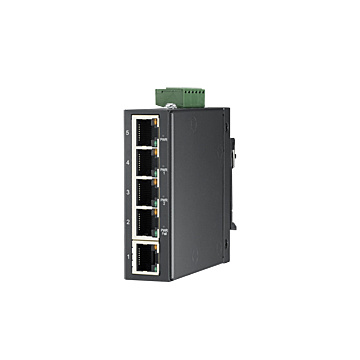

EKI-2525LI
SKU
EKI-2525LI
Lead time 14-22 days
5FE Slim type Unmanaged Industrial Ethernet Switch
- Supports wide operating temperatures from -40 to 75 °C
- Supports redundant 12 ~ 48 VDC power terminal input plus one DC power jack and P-Fail relay
- Provides compact size with DIN-rail/Wall mount, and IP40 metal mechanism
- Supports 10/100 Mbps Auto-Negotiation
- Provides 5 Fast Ethernet ports with Auto MDI/MDI-X
| Ethernet Communication | |
| Port Number | 5 |
| RJ-45 Port Connector | 5 x RJ-45 |
| RJ-45 Transmission speed | 10/100Mbps |
| RJ-45 Transmission Distance | 100m |
| Fiber Port Interface | - |
| Fiber Transmission Speed | - |
| Fiber Transmission Distance | - |
| Protocol support | |
| Modbux TCP | |
| Modbus RTU | |
| PROFINET | |
| Ethernet/IP | Yes |
| EtherCAT | |
| OPC UA | |
| BACnet | |
| Ethernet | |
| Certification | |
| Ethernet Standard | IEEE 802.3, 802.3u |
| EMI | |
| EMC | |
| Shock | - |
| Freefall | - |
| Vibration | - |
| Power | |
| Power Input | 12-48 VDC |
| Operating Current | |
| Consumption | 3w |
| PoE Information | |
| PoE Port Number | - |
| PoE Output | - |
| PoE Budget | - |
| Switch Properties | |
| MAC Table Size | 2K |
| Packet Buffer Size | 448Kbit |
| Switch Fabric Speed | 1.0 Gbps |
| Jumbo Frame | 9,216 bytes |
| Mechanical | |
| Dimension | 25 x 80 x 84mm |
| IP Rating | IP40 |
| Enclosure | Metal |
| Weight | 0.5kg |
| Mounting | Din-Rail / Wall |
| Environment | |
| Operating Temp | -40 ..70C |
| Storage Temp | -40 ..85C |
| Relative Humidity | 10-95% |
| Managed Eth | Un-Managed |
|---|---|
| Manufacturer / Brand | Advantech |
