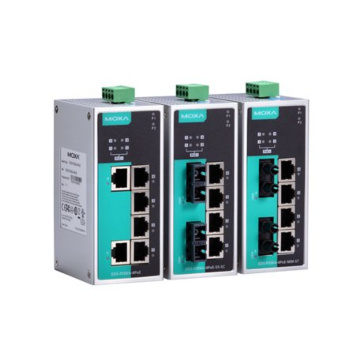

EDS-P206A-4PoE
SKU
EDS-P206A-4PoE
Lead time 14-22 days
6-port unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports
- IEEE 802.3af/at compliant PoE and Ethernet combo ports
- Up to 30 W output per PoE port
- 12/24/48 VDC redundant power inputs
- Intelligent power consumption detection and classification Redundant dual VDC power inputs
- -40 to 75°C operating temperature range (-T models)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-P206A-4PoE Series: 2 EDS-P206A-4PoE-M-SC/M-ST/S-SC Series: 1 Supported functions: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-P206A-4PoE-M-SC Series: 1 EDS-P206A-4PoE-MM-SC Series: 2 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-P206A-4PoE-M-ST Series: 1 EDS-P206A-4PoE-MM-ST Series: 2 |
| 100BaseFX Ports (single-mode SC connector) | EDS-P206A-4PoE-S-SC/P206A-4PoE-S-SC-T:
1 EDS-P206A-4PoE-SS-SC/P206A-4PoE-SS-SC-T: 2 |
| PoE Ports (10/100BaseT(X), RJ45 connector) | 4 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3x for flow control IEEE 802.3u for 100BaseT(X) |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 2K |
| Packet Buffer Size | 768 kbits |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | 1 removable 4-contact terminal block |
| Input Current | |
| Input Voltage | 12/24/48 VDC Redundant dual inputs |
| Power Budget | Max. 120 W for total PD consumption Max. 30 W for each PoE port |
| Physical | |
| Dimensions | 50.3 x 114 x 70 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | Multi-mode |
| PoE Option | PoE Ports |
| Manufacturer / Brand | Moxa |
