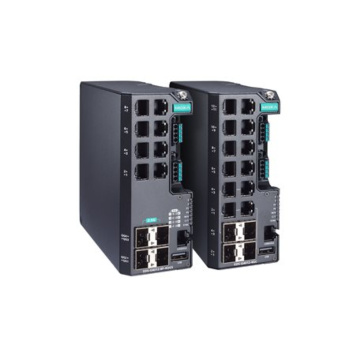

EDS-G4012 Series

Customize EDS-G4012 Series

* Required Fields

Your Customization
EDS-G4012 Series
EDS-G4012 Series

0.00EUR

Summary
    SKU
    EDS-G4012-xx
    Lead time 21-30 days
    0.00EUR

    12G-port full Gigabit managed Ethernet switches with an 8 802.3bt PoE port option

    • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
    • Support for IEEE 802.3bt PoE for up to 90 W output per port
    • Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
    • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
    • Wide range of power input options for flexible deployment
    • Compact and flexible housing design to fit into confined spaces
    • Supports MXstudio for easy, visualized industrial network management
    Ethernet Interface
    10/100/1000BaseT(X) Ports (RJ45 connector) EDS-G4012-4GC-HV/-LV/-T models: 8
    Auto MDI/MDI-X connection
    Auto negotiation speed
    Full/Half duplex mode
    Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
    EDS-G4012-4GC-LV/-HV/-T models: 4
    PoE Ports (10/100/1000BaseT(X), RJ45 connector) EDS-G4012-8P-4QGS-LVA/-LVB/-T models: 8
    1000/2500BaseSFP Ports EDS-4012-4GC-LV/-HV/-T models: 4
    100BaseFX Ports (single-mode SC connector)

    EDS-G4012-8P-4QGS-LVA/-LVB/-T models: 4
    Standards IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3bz for 2.5GBaseX
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1X for authentication
    Ethernet Software Features
    Industrial Protocols EtherNet/IP
    Modbus TCP
    PROFINET IO Device
    Management Ipv4/IPv6
    Flow control
    Back Pressure Flow Control
    DHCP Server/Client
    ARP
    RARP
    LLDP
    Port Mirroring (SPAN, RSPAN)
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB
    Fiber check
    Filter GMRP
    GVRP
    GARP
    802.1Q VLAN
    IGMP Snooping v1/v2/v3
    IGMP Querier
    Redundancy Protocols STP
    RSTP
    Turbo Ring v2
    Turbo Chain
    Ring Coupling
    Dual-Homing
    MRP
    Link Aggregation
    MSTP
    Switch Properties
    MAC Table Size 16 K
    Packet Buffer Size 1 Mb
    Max. No. Of VLANs 256
    Power Parameters
    Connection 2 removable 4-contact terminal block(s)
    Pre-installed Power Module -LV/-LV-T models: PWR-100–LV
    -HV/-HV-T models: PWR-105-HV-I
    -LVA/-LVA-T models: PWR-101-LV-BP-I
    -LVB/-LVB-T models: PWR-103-LV-VB-I
    Input Voltage -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
    -HV/-HV-T models: 110/220 VDC/VAC, Single input
    -LVA/-LVA-T models: 48 VDC, Redundant dual inputs
    -LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs
    Operating Voltage -LV/-LV-T models: 9.6 to 60 VDC
    -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
    -LVA/-LVA-T models: 44 to 57 VDC (>52 VDC for PoE+ output recommended)
    -LVB/-LVB-T models: 12 to 57 VDC (>52 VDC for PoE+ output recommended)
    Physical
    Dimensions 55 x 140 x 120 mm
    Installation Din-rail mounting
    Wall mounting (optional)
    Housing Metal
    Environmeltal
    Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)
    Ambient Relative Humidity 5 to 95% (non-condensing)
    More Information
    Managed EthManaged
    Manufacturer / BrandMoxa
