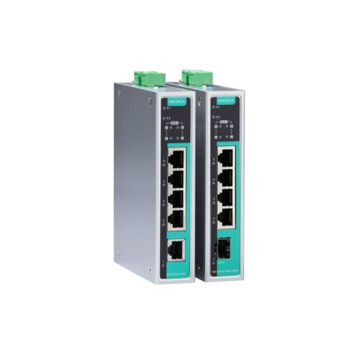

EDS-G205A-4PoE
SKU
EDS-G205A
Lead time 14-22 days
5-port full Gigabit unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE ports
- Full Gigabit Ethernet ports
- IEEE 802.3af/at, PoE+ standards
- Up to 36 W output per PoE port
- 12/24/48 VDC redundant power inputs
- Supports 9.6 KB jumbo frames
- Intelligent power consumption detection and classification
- Smart PoE overcurrent and short-circuit protection
- -40 to 75°C operating temperature range (-T models)
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-G205A-4PoE Series: 5 EDS-G205A-4PoE-1GSFP Series: 4 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100/1000BaseSFP Ports | EDS-G205A-4PoE-1GSFP Series: 1 |
| PoE Ports (10/100/1000BaseT(X), RJ45 connector) | 4 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 8K |
| Packet Buffer Size | 1Mbits |
| Max. No. Of VLANs | |
| Power Parameters | |
| Connection | 2 removable 2-contact terminal block |
| Input Current | 12/24/48 VDC, Redundant dual inputs |
| Input Voltage | 12/24/48 VDC Redundant dual inputs |
| Physical | |
| Dimensions | 29 x 135 x 105 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | SFP |
| PoE Option | PoE Ports |
| Manufacturer / Brand | Moxa |
