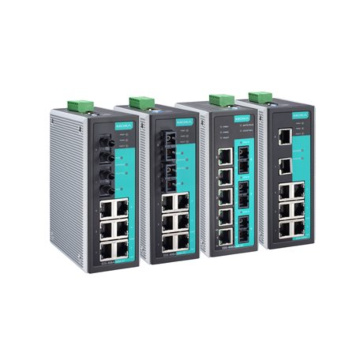

EDS-408A
SKU
EDS-408A
Lead time 21-30 days
8-port entry-level managed Ethernet switches
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- Supports MXstudio for easy, visualized industrial network management
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-408A/408A-T, EDS-408A-EIP/PN
models: 8 EDS-408A-MM-SC/MM-ST/SS-SC models: 6 EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC models: 5 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-408A-MM-SC/2M1S-SC models: 2 EDS-408A-3M-SC models: 3 EDS-408A-1M2S-SC models: 1 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-408A-MM-ST models: 2 EDS-408A-3M-ST models: 3 |
| 100BaseFX Ports (single-mode SC connector) | EDS-408A-SS-SC/1M2S-SC models: 2 EDS-408A-2M1S-SC models: 1 EDS-408A-3S-SC/3S-SC-48 models: 3 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol |
| Ethernet Software Features | |
| Filter | 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP, EDS-408A-PN models: PROFINET IO Device (Slave) |
| Management | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| Redundancy Protocols | RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Switch Properties | |
| Processing Type | |
| MAC Table Size | 8K |
| Packet Buffer Size | 1 Mbits |
| Max. No. Of VLANs | 64 |
| Power Parameters | |
| Connection | 1 removable 6-contact terminal block |
| Input Current | EDS-408A, EDS-408A-EIP/PN/MM-SC/MM-ST/SS-SC models: 0.61 @ 12 VDC 0.3 @ 24 VDC 0.16 @ 48 VDC EDS-408A-3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC models: 0.73 @ 12 VDC 0.35 @ 24 VDC 0.18 @ 48 VDC EDS-408A-3S-SC-48 models: 0.33 A @ 24 VDC 0.17 A @ 48 VDC |
| Input Voltage | 12/24/48 VDC |
| Physical | |
| Dimensions | 53.6 x 135 x 105 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Managed |
|---|---|
| Fiber Option | Single-mode |
| PoE Option | None |
| Manufacturer / Brand | Moxa |
